  • YKJ-505287NL AAOE+5052-8721 Ease Electronics

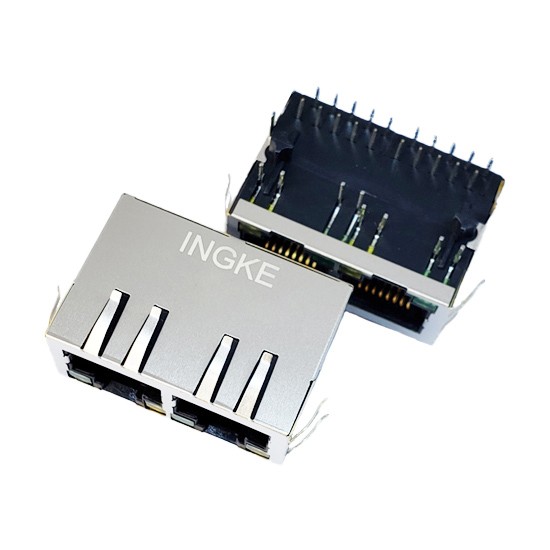

YKJ-505287NL AAOE+5052-8721 Ease Electronics

Product Description:

INGKE YKJ-505287NL 100% compatible with AAOE+5052-8721 Ease Electronics

Part No.: AAOE+5052-8721 Ease Electronics
INGKE Part No.: YKJ-505287NL
Made in China: INGKE Technology
Description: AAOE+5052-8721 Ease Electronics 2 Ports 10/100 Base-TX
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 2
Number of Rows: 1
Applications: 10/100 Base-TX, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.531" (13.50mm)
LED Color: Green - Orange, Yellow
Number of Cores per Jack: 8
Shielding: Shielded
Features: Board Guide
Tab Direction: Up
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Contact Finish Thickness: Flash
Shield Material: Copper Alloy, Nickel Coated
Housing Material: Polyamide (PA66), Nylon 6/6, Glass Filled
Categories:Connectors, Interconnects,Modular Connectors,Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
