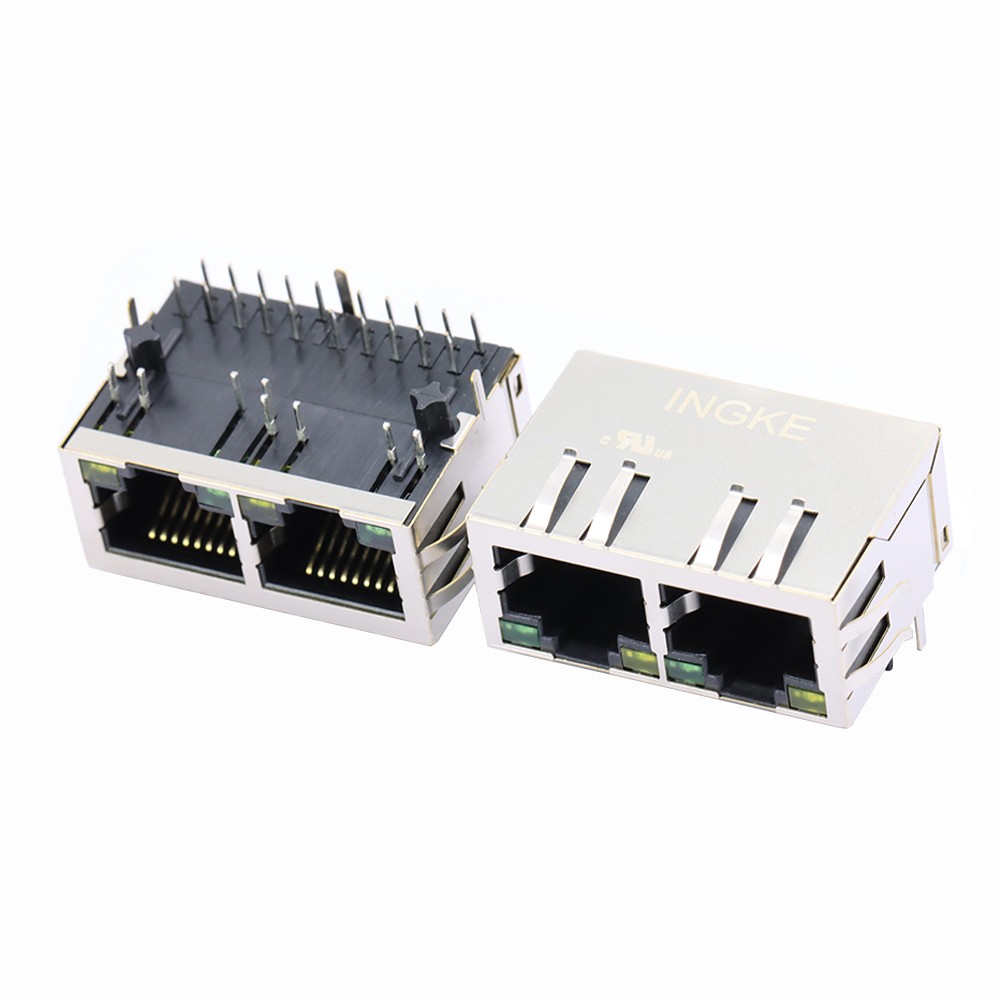

YKJ-265158NL TMJ26515-8AENL Taoglas

INGKE YKJ-265158NL 100% compatible with TMJ26515-8AENL Taoglas

Part No.: TMJ26515-8AENL Taoglas
INGKE Part No.: YKJ-265158NL
Made in China: INGKE Technology
Description: TMJ26515-8AENL Taoglas 2 Ports 10/100 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 2
Number of Rows: 1
Applications: 10/100 Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.527" (13.39mm)
LED Color: Green - Yellow
Number of Cores per Jack: 4
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Down
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Stainless Steel
Housing Material: Polybutylene Terephthalate (PBT), Glass Filled
Categories:Connectors, Interconnects,Modular Connectors,Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
