Product Description:

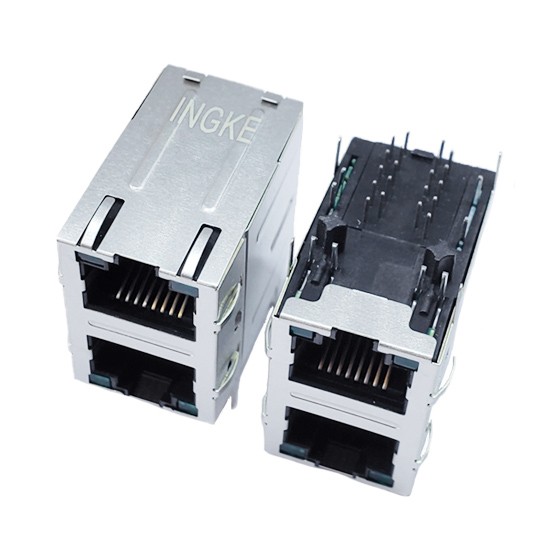

INGKE YKJ-230199NL 100% compatible with 2301997-5 TE Connectivity
Part No.: 2301997-5 TE Connectivity
INGKE Part No.: YKJ-230199NL
Made in China: INGKE Technology
Description: 2301997-5 TE Connectivity 2 Ports 10/100 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: RJ45
Number of Ports: 2
Number of Rows: 2
Applications: 10/100 Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 1.006" (25.55mm)
LED Color: Green - Yellow
Number of Cores per Jack: 4
Shielding: Shielded, EMI Finger
Features: Board Lock
Tab Direction: Up and Down
Contact Material: Copper Alloy
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Brass
Housing Material: Liquid Crystal Polymer (LCP)
Categories:Connectors, Interconnects,Modular Connectors,Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
