Product Description:

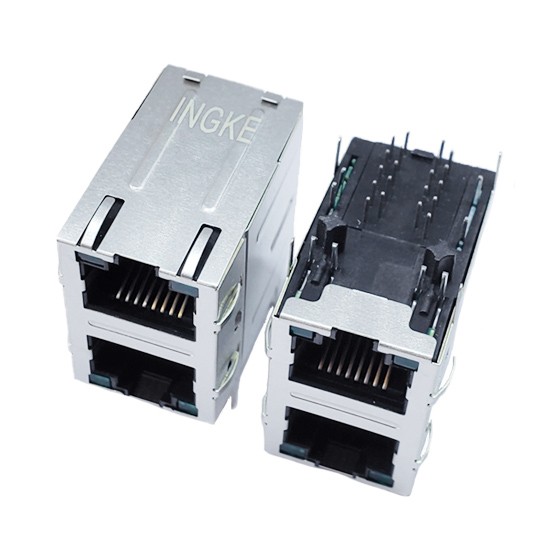

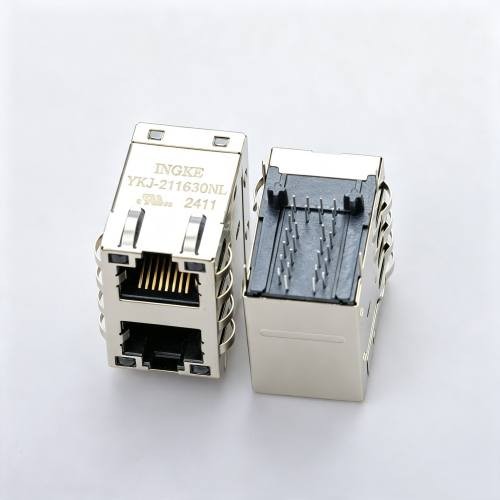

INGKE YKJ-211630NL 100% compatible with AAOE+2116-D3002 Ease Electronics
Part No.: AAOE+2116-D3002 Ease Electronics
INGKE Part No.: YKJ-211630NL
Made in China: INGKE Technology
Description: AAOE+2116-D3002 Ease Electronics 2 Ports 10/100 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: RJ45
Number of Ports: 2
Number of Rows: 2
Applications: 10/100 Base-TX, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 1.015" (25.79mm)
LED Color: Green - Yellow
Number of Cores per Jack: 8
Shielding: Shielded
Features: Board Guide
Tab Direction: Up and Down
Contact Material: Copper Alloy
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Copper Alloy
Housing Material: Polybutylene Terephthalate (PBT)
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
