Product Description:
INGKE YKJ-200206NL 100% compatible with JX20-0206NL Pulse
Part No.: JX20-0206NL Pulse
INGKE Part No.: YKJ-200206NL
Made in China: INGKE Technology

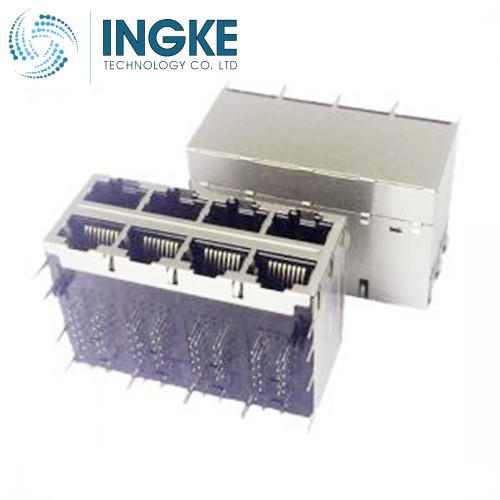

Description: JX20-0206NL Pulse 8 Ports RJ45 Ethernet Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Latch: Tab Up and Tab Down
LED: Does Not Contain LED
Shielding: Shielded, EMI Finger
Ports: 8
Applications: 10/100 Base-TX, AutoMDIX
PCB Mount: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Operating Temperature: -40°C ~ 85°C
Contact Material: Phosphor Bronze
Shield Material: Copper Alloy
Housing Material: Thermoplastic
Categories:Connectors, Interconnects,Modular Connectors,Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
