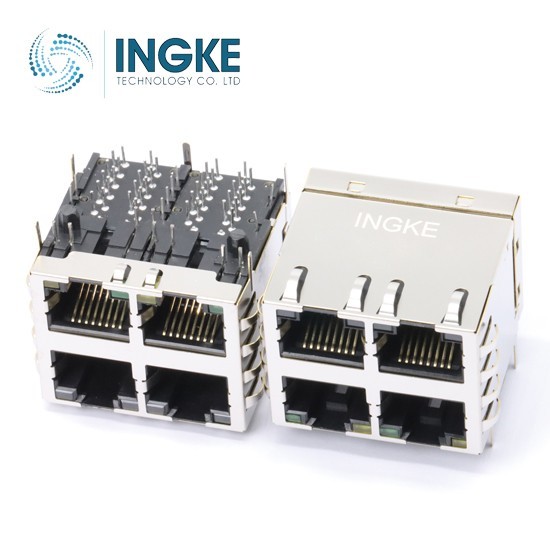

YKJ-184614NL 1840261-4 TRP

Product Description:
INGKE YKJ-184614NL 100% compatible with 1840261-4 TRP

Part No.: 1840261-4 TRP
INGKE Part No.: YKJ-184614NL
Made in China: INGKE Technology
Description: 1840261-4 TRP 4 Ports RJ45 10/100 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks

Applications: 10/100 Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.992" (25.19mm)
LED Color: Green, Yellow - Green, Yellow
Number of Cores per Jack: 4
Shielding: Shielded, EMI Finger
Features: Board Guide, Decoupling Capacitance
Tab Direction: Up and Down
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Brass
Housing Material: Thermoplastic
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
