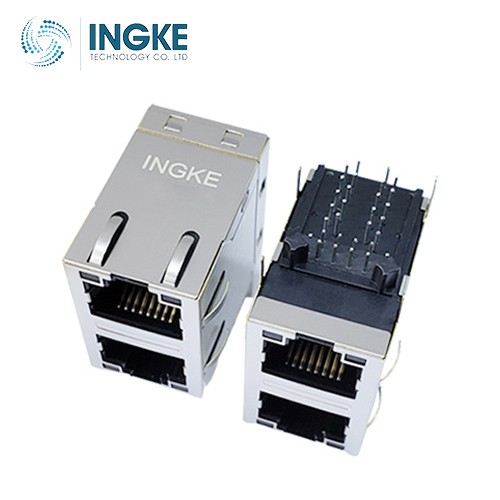

YKJ-080020NL AMJT-8-T-R-P2 Assmann WSW Components

INGKE YKJ-080020NL 100% compatible with AMJT-8-T-R-P2 Assmann WSW Components

Part No.: AMJT-8-T-R-P2 Assmann WSW Components
INGKE Part No.: YKJ-080020NL
Made in China: INGKE Technology
Description: AMJT-8-T-R-P2 Assmann WSW Components 2 Ports 10/100 Base-TX
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 2
Number of Rows: 2
Applications: 10/100 Base-TX, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 1.006" (25.55mm)
LED Color: Does Not Contain LED
Number of Cores per Jack: 4
Shielding: Shielded, EMI Finger
Features: Board Lock
Tab Direction: Up and Down
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Brass
Housing Material: Thermoplastic
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
