Product Description:

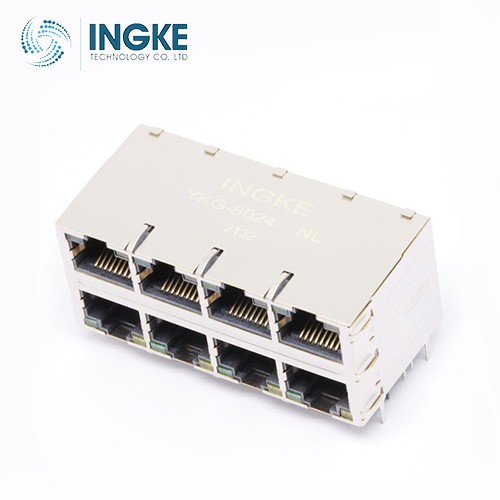

INGKE YKJ-024240NL 100% compatible with TIC-L024-24 Tamura
Part No.: TIC-L024-24 Tamura
INGKE Part No.:
YKJ-024240NL
Made in China: INGKE Technology
Description: TIC-L023-24 Tamura 8 Ports RJ45 10/100 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: RJ45
Number of Ports: 8
Number of Rows: 2
Applications: 10/100 Base-TX, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.981" (24.93mm)
LED Color: Does Not Contain LED
Number of Cores per Jack: 4
Shielding: Shielded, EMI Finger
Features: Board Lock
Tab Direction: Up and Down
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: 0°C ~ 85°C
Shield Material: Stainless Steel
Housing Material: Polyamide (PA6T), Nylon 6T
Categories:Connectors, Interconnects,Modular Connectors,Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
