  • YKJ-016140NL TIC-L016-14 Tamura

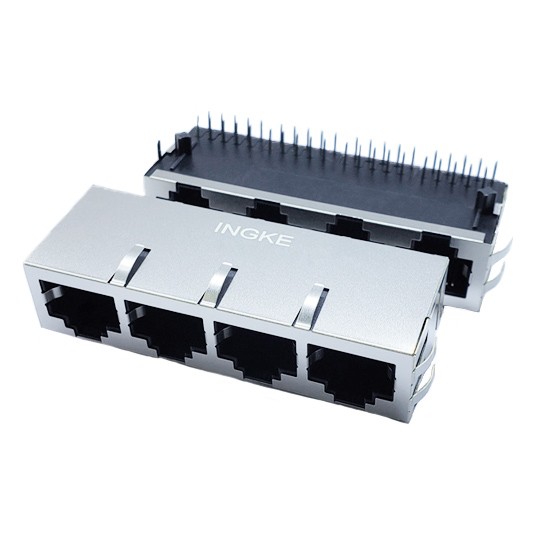

YKJ-016140NL TIC-L016-14 Tamura

Product Description:

INGKE YKJ-016140NL 100% compatible with TIC-L016-14 Tamura

Part No.: TIC-L016-14 Tamura
INGKE Part No.: YKJ-016140NL
Made in China: INGKE Technology
Description: TIC-L016-14 Tamura 4 Ports 10/100 Base-TX
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 4
Number of Rows: 1
Applications: 10/100 Base-TX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.530" (13.45mm)
LED Color: Does Not Contain LED
Number of Cores per Jack: 5
Shielding: Shielded, EMI Finger
Features: Board Lock
Tab Direction: Down
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: 0°C ~ 85°C
Shield Material: Stainless Steel
Housing Material: Polyamide (PA6T), Nylon 6T
Categories:Connectors, Interconnects,Modular Connectors,Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
