  • YKJ-000032NL JG0-0032 Pulse

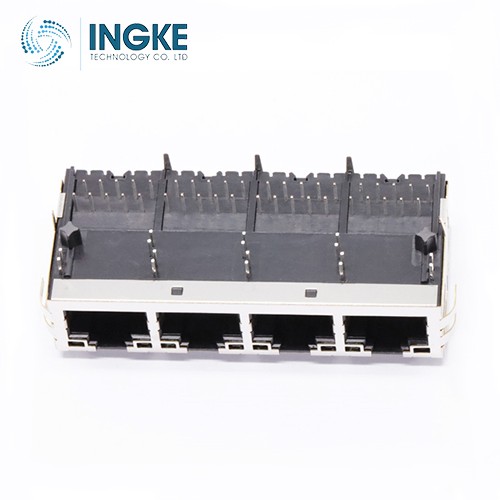

YKJ-000032NL JG0-0032 Pulse

Product Description:

INGKE YKJ-000032NL 100% compatible with JG0-0032 Pulse

Part No.: JG0-0032 Pulse
INGKE Part No.: YKJ-000032NL
Made in China: INGKE Technology
Description: JG0-0032 Pulse 4 Ports 10/100 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 4
Number of Rows: 1
Applications: 10/100 Base-TX, AutoMDIX, Power over Ethernet (PoE)
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.535" (13.59mm)
LED Color: Green, Yellow - Green
Number of Cores per Jack: 4
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Up
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Brass
Housing Material: Thermoplastic
Categories: Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
