  • YKG-800033NL JX80-0033NL Pulse

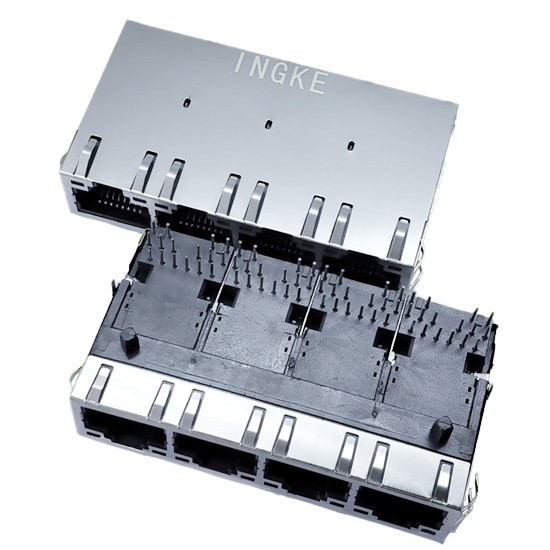

YKG-800033NL JX80-0033NL Pulse

Product Description:

INGKE YKG-800033NL 100% compatible with JX80-0033NL Pulse

Part No.: JX80-0033NL Pulse
INGKE Part No.: YKG-800033NL
Made in China: INGKE Technology
Description: JX80-0033NL Pulse 4 Ports 10/100/1000 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 4
Number of Rows: 1
Applications: 10/100/1000 Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.545" (13.84mm)
LED Color: Green, Amber - Green, Amber
Number of Cores per Jack: 8
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Up
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Copper Alloy
Housing Material: Thermoplastic
Categories: Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
