  • YKG-590141NL AAOE+B5901-4123 Ease Electronics

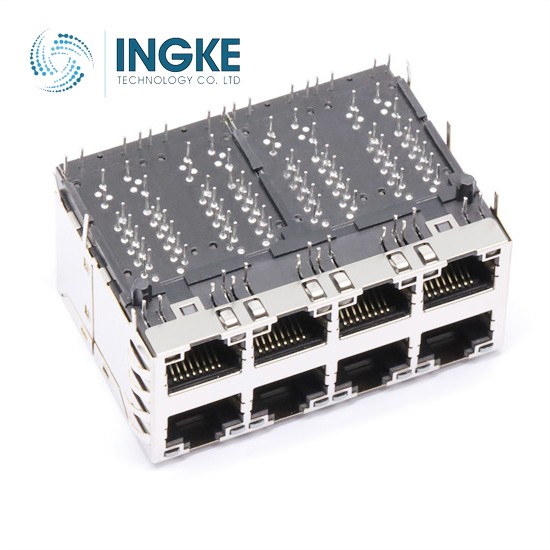

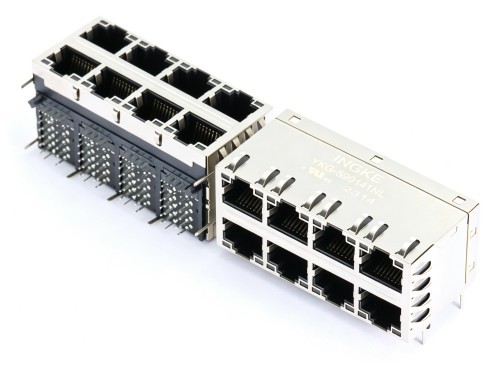

YKG-590141NL AAOE+B5901-4123 Ease Electronics

Product Description:
INGKE YKG-590141NL 100% compatible with AAOE+B5901-4123 Ease Electronics

Part No.: AAOE+B5901-4123 Ease Electronics
INGKE Part No.: YKG-590141NL
Made in China: INGKE Technology
Description: AAOE+B5901-4123 Ease Electronics 8 Ports 10/100/1000 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 8
Number of Rows: 2
Applications: 10/100/1000 Base-TX, AutoMDIX, Power over Ethernet (PoE)
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 1.012" (25.71mm)
LED Color: Green - Orange, Yellow
Number of Cores per Jack: 8
Shielding: Shielded
Features: Board Guide
Tab Direction: Up and Down
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Contact Finish Thickness: Flash
Shield Material: Copper Alloy
Housing Material: Polyamide (PA66), Nylon 6/6, Glass Filled
Categories:Connectors, Interconnects,Modular Connectors,Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
