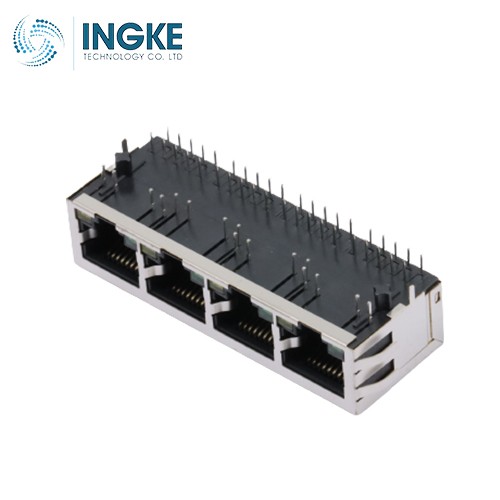

YKG-527500NL TMJY527DYDZ5NL Taoglas

INGKE YKG-527500NL 100% compatible with TMJY527DYDZ5NL Taoglas

Part No.: TMJY527DYDZ5NL Taoglas
INGKE Part No.: YKG-527500NL
Made in China: INGKE Technology
Description: TMJY527DYDZ5NL Taoglas 4 Ports 1G Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 4
Number of Rows: 1
Applications: 1G Base-T, AutoMDIX, Power over Ethernet (PoE)
Mounting Type: Through Hole
Orientation: Vertical
Termination: Solder
Height Above Board: 0.531" (13.49mm)
LED Color: Green, Orange - Yellow
Number of Cores per Jack: 8
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Up
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Brass
Housing Material: Thermoplastic
Categories: Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
