Product Description:

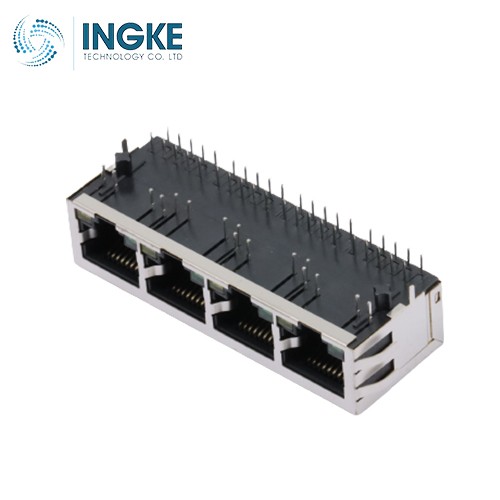

INGKE YKG-469450NL 100% compatible with TMJG46945AENL Taoglas
Part No.: TMJG46945AENL Taoglas
INGKE Part No.: YKG-469450NL
Made in China: INGKE Technology
Description: TMJG46945AENL Taoglas 4 Ports 1G Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: RJ45
Number of Ports: 4
Number of Rows: 1
Applications: 1G Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.527" (13.39mm)
LED Color: Green - Yellow
Number of Cores per Jack: 8
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Down
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Stainless Steel
Housing Material: Polybutylene Terephthalate (PBT), Glass Filled
Categories: Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
