  • YKG-224001NL 2245390001 Molex

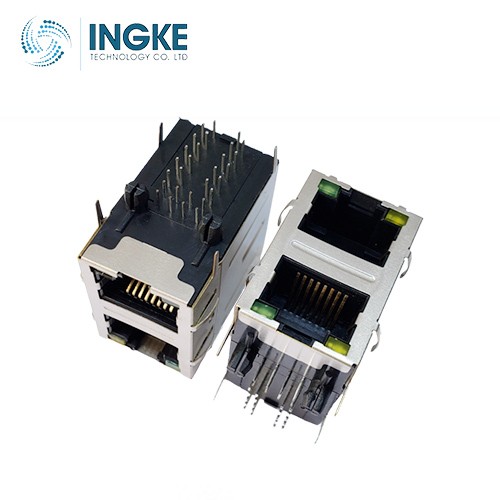

YKG-224001NL 2245390001 Molex

Product Description:

INGKE YKG-224001NL 100% compatible with 2245390001 Molex

Part No.: 2245390001 Molex
INGKE Part No.: YKG-224001NL
Made in China: INGKE Technology
Description: 2245390001 Molex 2 Ports 1G Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 2
Number of Rows: 2
Applications: 1G Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 1.015" (25.79mm)
LED Color: Yellow - Green
Number of Cores per Jack: 4
Shielding: Shielded, EMI Finger
Features: Board Guide, Solder Retention
Tab Direction: Up and Down
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Brass
Housing Material: Liquid Crystal Polymer (LCP)
Categories:Connectors, Interconnects,Modular Connectors,Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
