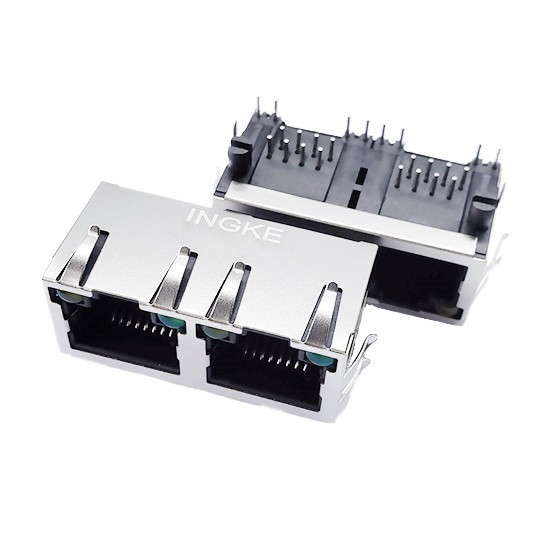

YKG-212110NL RJMG212032110NR Amphenol ICC

INGKE YKG-212110NL 100% compatible with RJMG212032110NR Amphenol ICC

Part No.: RJMG212032110NR Amphenol ICC
INGKE Part No.: YKG-212110NL
Made in China: INGKE Technology
Description: RJMG212032110NR Amphenol ICC 2 Ports 10/100/1000 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks

Number of Ports: 2
Number of Rows: 1
Applications: 10/100/1000 Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.526" (13.36mm)
LED Color: Green - Yellow
Number of Cores per Jack: 12
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Up
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Stainless Steel
Housing Material: Thermoplastic, Polyester
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
