  • YKG-184031NL 1840310-4 TRP Connector

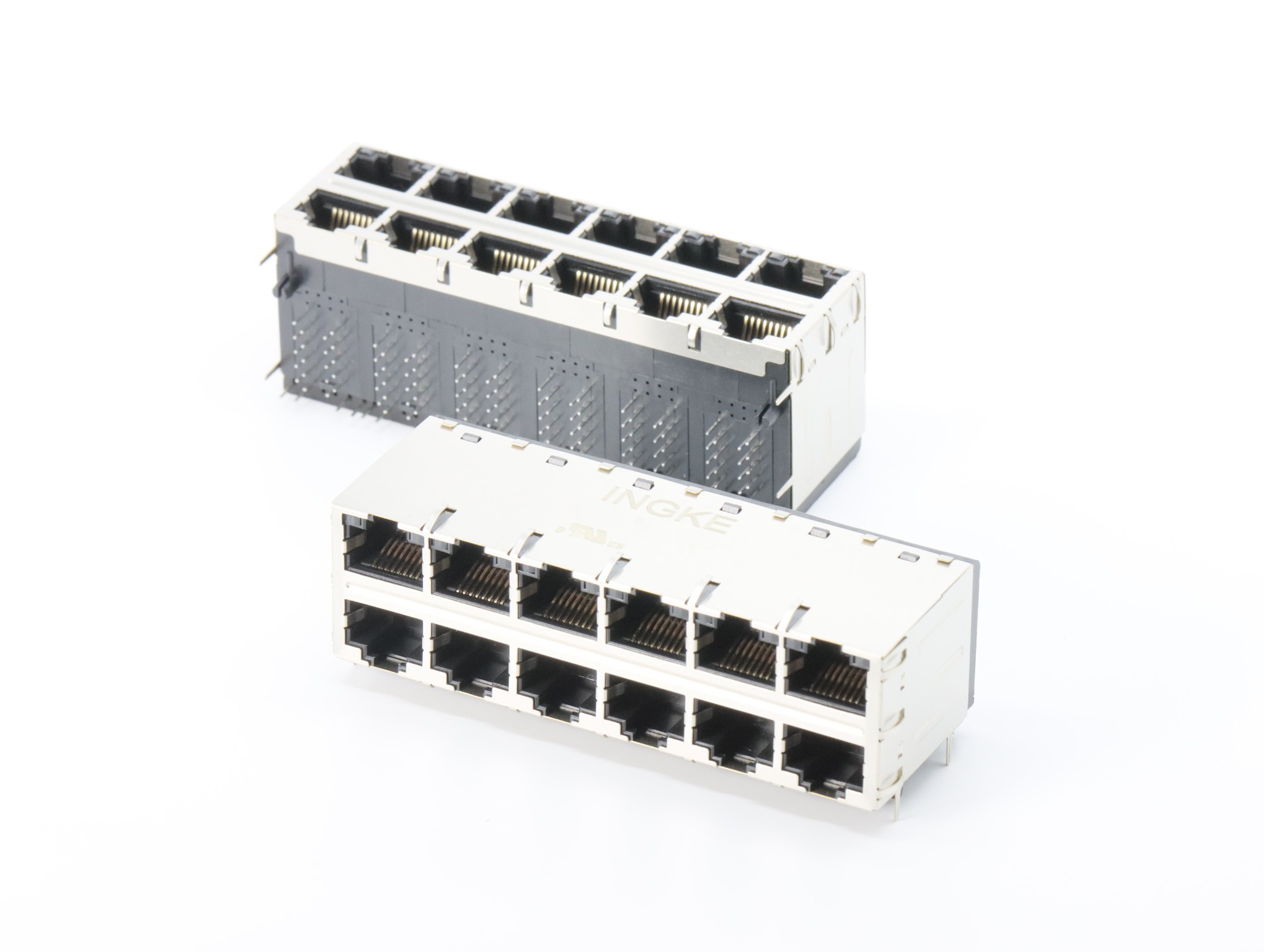

YKG-184031NL 1840310-4 TRP Connector

Product Description:

INGKE YKG-184031NL 100% compatible with 1840310-4 TRP Connector

Part No.: 1840310-4 TRP Connector
INGKE Part No.: YKG-184031NL
Made in China: INGKE Technology
Description: 1840310-4 TRP Connector 12 Ports 10/100/1000 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 12
Number of Rows: 2
Applications: 10/100/1000 Base-T, AutoMDIX
Mounting Type: Board Edge, Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
LED Color: Yellow, Green - Yellow, Green
Number of Cores per Jack: 8
Shielding: Shielded, EMI Finger
Features: Board Lock
Tab Direction: Up and Down
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Brass
Housing Material: Thermoplastic
Categories:Connectors, Interconnects,Modular Connectors,Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
