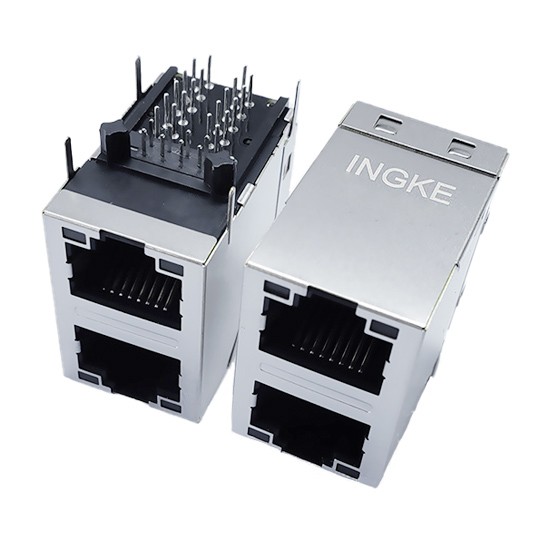

YKG-082133NL 0843-2C1T-33-F Bel Fuse

Product Description:

INGKE YKG-082133NL 100% compatible with 0843-2C1T-33-F Bel Fuse

Part No.: 0843-2C1T-33-F Bel Fuse
INGKE Part No.: YKG-082133NL
Made in China: INGKE Technology
Description: 0843-2C1T-33-F Bel Fuse 2 Ports 10/100/1000 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 2
Number of Rows: 2
Applications: 10/100/1000 Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 1.042" (26.47mm)
LED Color: Yellow, Green - Yellow, Green
Number of Cores per Jack: 12
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Up and Down
Contact Material: Copper Alloy
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Copper Alloy
Housing Material: Polybutylene Terephthalate (PBT)
Categories: Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
