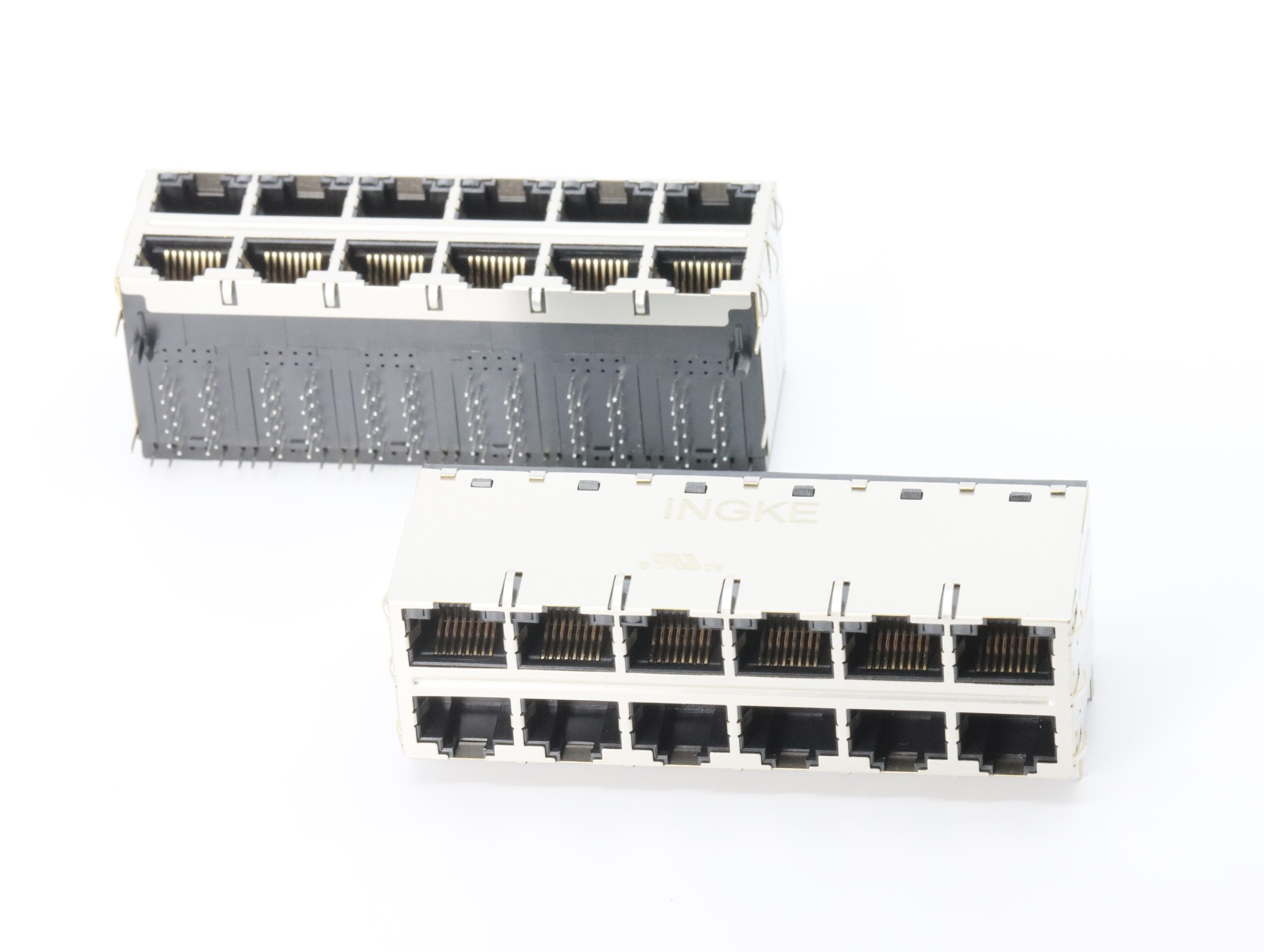

Home Products Stacked RJ45 Connector 2x6 Ports RJ45 Connector YKG-003448NL J0B-3448NL Pulse
INGKE YKG-003448NL 100% compatible with J0B-3448NL Pulse
Part No.: J0B-3448NL Pulse
INGKE Part No.: YKG-003448NL
Made in China: INGKE Technology
Description: J0B-3448NL Pulse 12 Ports 10/100/1000 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: RJ45
Number of Ports: 12
Number of Rows: 2
Applications: 10/100/1000 Base-T, Power over Ethernet+ (PoE+)
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.995" (25.28mm)
LED Color: Yellow - Green
Number of Cores per Jack: 9
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Up and Down
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Copper Alloy
Categories:Connectors, Interconnects,Modular Connectors,Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
