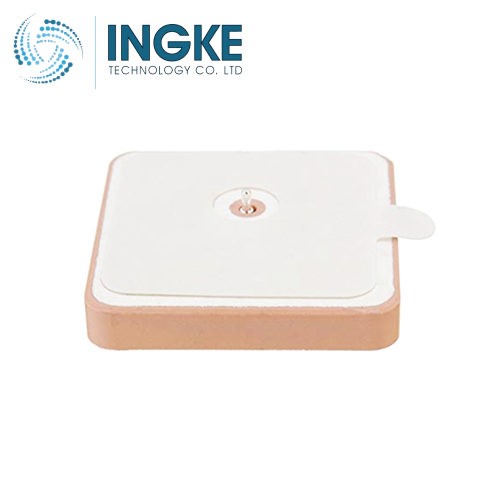

YKRF-ASGGB254.A Taoglas ASGGB254.A RF Antennas

Product Item : YKRF-ASGGB254.A INGKE
Category： Antenna
RF Antennas ASGGB254.A Active GNSS Surface Mount 25mm Patch
Replace ASGGB254.A Taoglas
INQUIRY EMAIL

Product Description:

INGKE YKRF-ASGGB254.A 100% cross Taoglas ASGGB254.A RF Antennas

Part No.: ASGGB254.A Taoglas
INGKE Part No.: YKRF-ASGGB254.A
Made in China: INGKE Technology
Description: RF Antennas ASGGB254.A Active GNSS Surface Mount 25mm Patch
MOQ: 1PCS
Lead Time: 1-2 Weeks

Product Category: RF Antennas
Product Type: GNSS Antennas - GPS, GLONASS, Galileo, Beidou
Product: PCB Antennas
Minimum Frequency: 1.561 GHz
Maximum Frequency: 1.602 GHz
Mechanical Style: Patch
Style:Ceramic
Gain: 1 dBi, 2.7 dB, 2.1 dBi
Impedance: 50 Ohms
VSWR: 3.5, 2.7, 3.8
Electrical Type: Embedded
Number of Bands: 3 Band
Mounting Style: PCB Mount
Termination Style: SMD/SMT
Center Frequency: 1561 MHz, 1575.42 MHz, 1601.6 MHz
Application: Navigation, Commercial Transportation, Asset Tracking
Length: 25 mm
Width: 25 mm
Height: 6 mm
Polarization: RHCP
Operating Temperature: -40°C ~ 85°C
RoHS Compliant and REACH

100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
