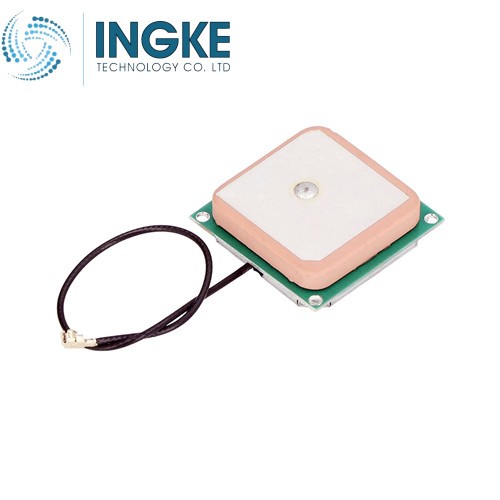

YKRF-AP.35A.07.0054A Taoglas AP.35A.07.0054A Antennas

Product Item : YKRF-AP.35A.07.0054A INGKE
Category： Antenna
GPS/GALILEO 1 Stage Active Patch GNSS Antennas
Replace AP35A070054A Taoglas
INQUIRY EMAIL

Product Description:

INGKE YKRF-AP.35A.07.0054A 100% cross Taoglas AP.35A.07.0054A Antennas

Part No.: AP.35A.07.0054A Taoglas
INGKE Part No.: YKRF-AP.35A.07.0054A
Made in China: INGKE Technology
Description: AP.35A.07.0054A Taoglas GPS/GALILEO 1 Stage Active Patch GNSS Antennas
MOQ: 1PCS
Lead Time: 1-2 Weeks

Product Category: Antennas
Product Type: GNSS Antennas - GPS, GLONASS, Galileo, Beidou
Product: PCB Antennas
Minimum Frequency: 1.574397 GHz
Maximum Frequency: 1.576443 GHz
Mechanical Style: Patch
Termination Style: Connector
Style: Ceramic
Gain: 17.5 dBi
Impedance: 50 Ohms
VSWR: 2
Mounting Style: Adhesive Mount
Antenna Connector Type: IPEX MHF1
Center Frequency: 1.57542 GHz
Length: 35 mm
Width: 35 mm
Height: 3.5 mm
Cable Type: 54 mm RF1.13
Cable Length: 54 mm
Polarization: RHCP
Application: Satellite Applications
Operating Temperature: -40°C ~ 85°C
RoHS Compliant and REACH

100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell

Tags: AP35A070054A Taoglas，Antennas
