Product Description:

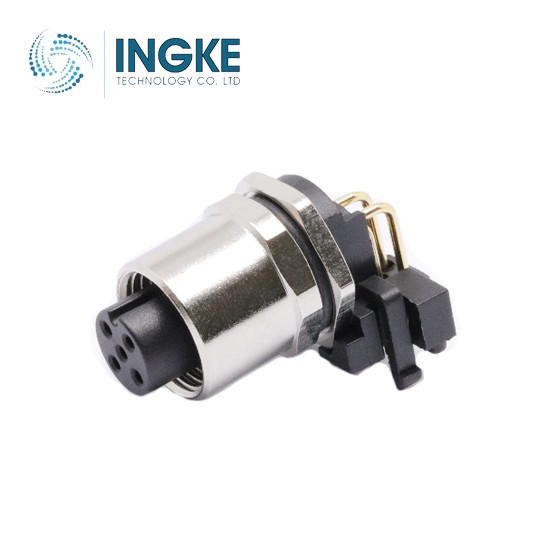

INGKE YKM12-PTB3208A 100% cross T4145035081-002 TE Connectivity
Part No.: T4145035081-002 TE Connectivity
INGKE Part No.: YKM12-PTB3208A
Made in China: INGKE Technology
Description: T4145035081-002 TE Connectivity M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Plug, Female Sockets
Number of Positions: 8
Shell Size - Insert: M12-8
Mounting Type: Panel Mount, Through Hole, Right Angle
Mounting Feature: Bulkhead - Front Side Nut
Termination: Solder
Fastening Type: Threaded
Orientation: A
Primary Material: Metal
Shell Material: Copper Alloy
Shell Finish: Nickel
Contact Finish - Mating: Gold
Ingress Protection: IP67 - Dust Tight, Waterproof
Current Rating (Amps): 2A
Voltage Rating: 30V
Operating Temperature: -40°C ~ 85°C
Contact Material: Zinc Die Cast
Insert Material: Polyamide (PA), Nylon
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
