Product Description:
INGKE YKP12-M105APRP 100% replace T4140012051-000 TE
Part No.: T4140012051-000 TE
INGKE Part No.: YKP12-M105APRP
Made in China: INGKE TECHNOLOGY
Lead time: 1-2 weeks
MOQ: 1 pcs

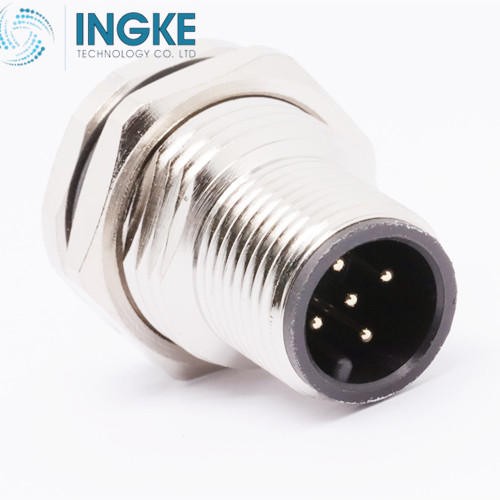

Description: T4140012051-000 TE M12 A Code 5 Position Circular Connector Plug, Male Pins Solder
Category:Connectors, Interconnects, Circular Connectors, Circular Connector Assemblies
Connector Type: Plug, Male Pins
Number of Positions: 5
Shell Size - Insert: M12-5
Mounting Type: Panel Mount, Through Hole
Mounting Feature: Bulkhead - Front Side Nut
Termination: Solder
Fastening Type: Push-Twist
Orientation: A
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Color: Silver
Contact Material: Copper Zinc
Insert Material: Polyamide (PA66), Nylon 6/6
Current Rating (Amps): 4A
Voltage Rating: 60V
Operating Temperature: -25°C ~ 85°C
Material Flammability Rating: UL94 V-0
Ingress Protection: IP67 - Dust Tight, Waterproof
Applications: Automation Control, Industrial, Telecommunications...
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
