Product Description:
INGKE YKB12-M103APRH 100% cross T4140012031-000 TE Connectivity
Part No.: T4140012031-000
TE Connectivity
INGKE Part No.: YKB12-M103APRH
Made in China: INGKE Technology
Description:

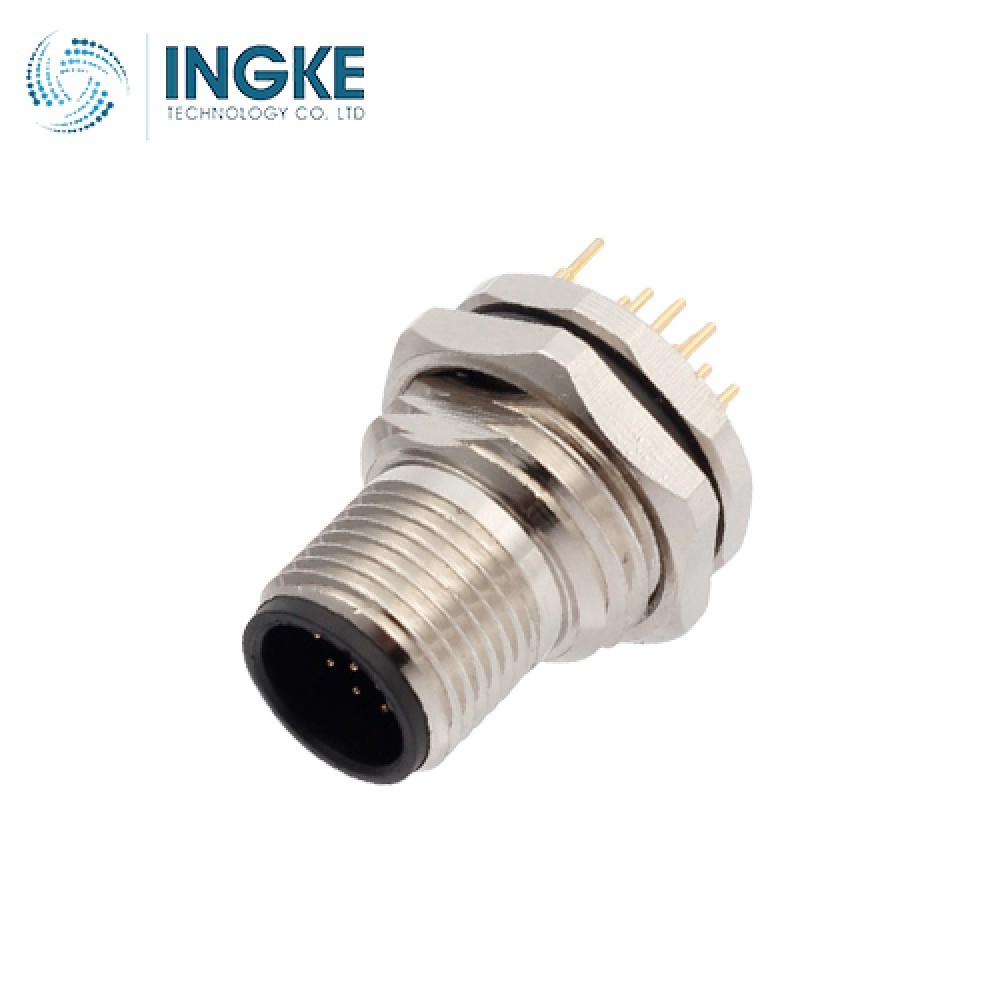

T4140012031-000 TE Connectivity M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Receptacle, Male Pins
Number of Positions: 3(2,3,4,5,6,8,12 are optional)
Shell Size - Insert: M12-3
Mounting Type: Panel Mount, Through Hole
Mounting Feature: Bulkhead - Front Side Nut
Termination: Solder
Fastening Type: Threaded
Orientation: A
Primary Material: Metal
Shell Material: Zinc Alloy
Shell Finish: Nickel
Contact Finish - Mating: Gold
Ingress Protection: IP67 - Dust Tight, Waterproof
Current Rating (Amps): 4A
Voltage Rating: 250V
Operating Temperature: -40°C ~ 105°C
Contact Material: Copper Alloy
Insert Material: Polyamide (PA66), Nylon 6/6
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
