Product Description:
INGKE YKP12-M102BSFH 100% cross T4132412021-000 TE Connectivity
Part No.:
T4132412021-000 TE Connectivity
INGKE Part No.: YKP12-M102BSFH
Made in China: INGKE Technology
Description:

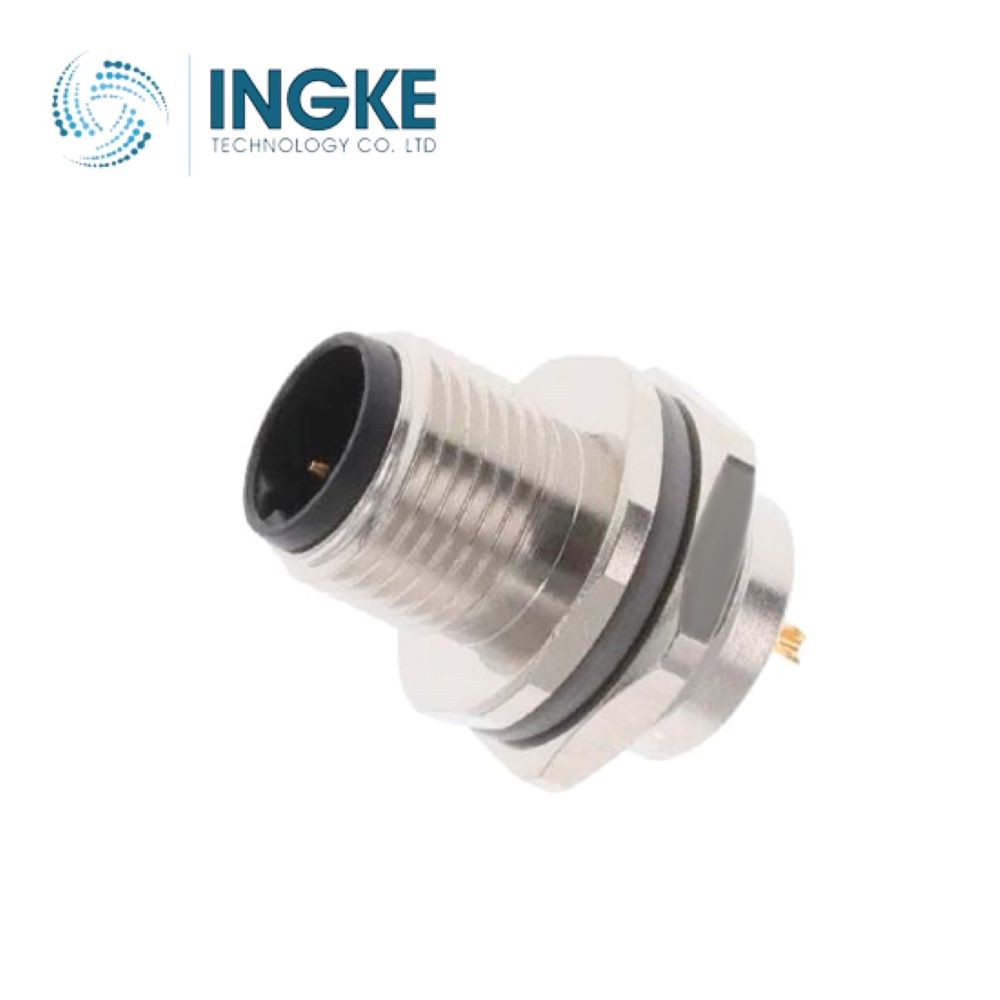

T4132412021-000 TE Connectivity M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Receptacle, Male Pins
Number of Positions: 2
Number of Positions Loaded: All
Shell Size - Insert: M12-2
Mounting Feature: Bulkhead - Rear Side Nut
Termination: Solder Cup
Primary Material: Metal
Contact Material: Copper Alloy
Insert Material: Polyamide (PA66), Nylon 6/6
Shell Material: Copper Alloy
Current Rating (Amps): 5A
Voltage Rating: 250VAC/DC
Operating Temperature: -25°C ~ 90°C
Mounting Type: Panel Mount
Orientation: B
Usage: Industrial, Medical, Automotive
Ingress Protection: IP67 - Dust Tight, Waterproof
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
