Product Description:

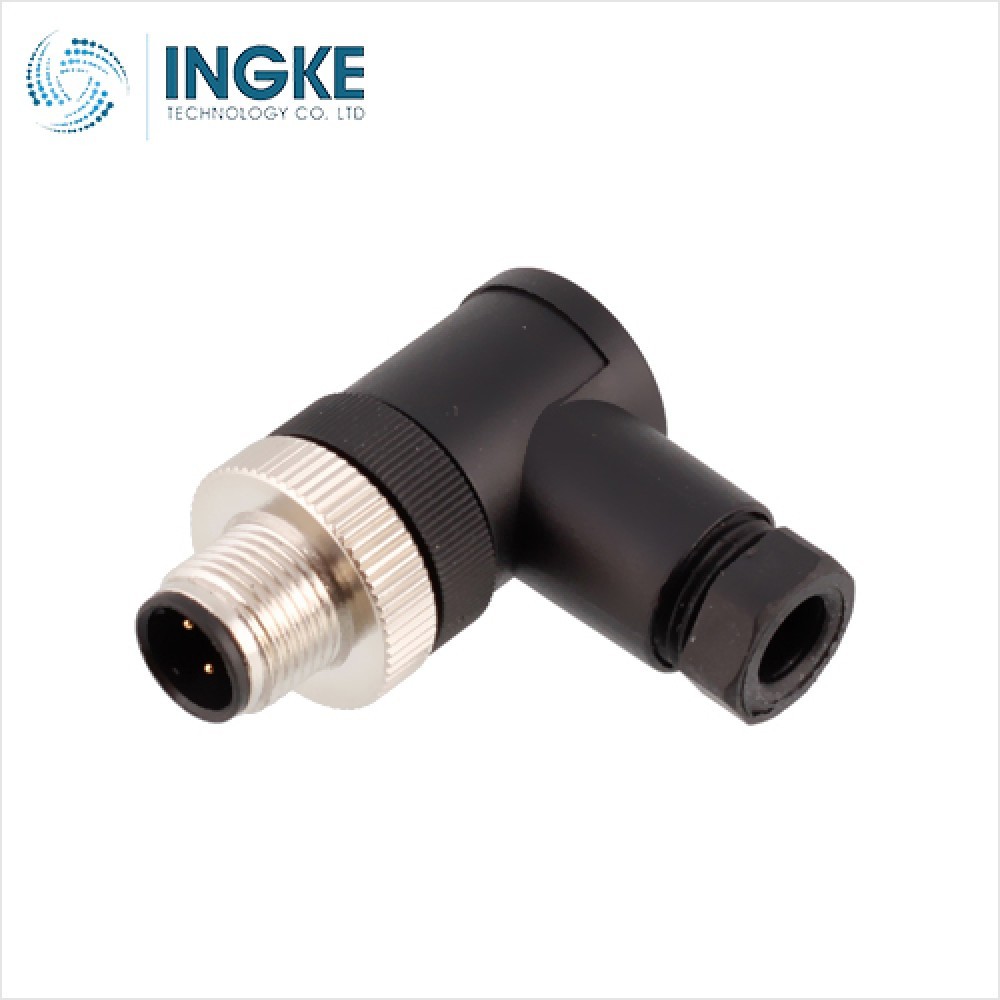

INGKE YKM12-ATR2104A 100% compatible with T4113002041-000 TE Connectivity
Part No.: T4113002041-000 TE Connectivity
INGKE Part No.: YKM12-ATR2104A
Made in China: INGKE TECHNOLOGY
Description: T4113002041-000 TE Connectivity M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Receptacle, Male Pins
Number of Positions: 4
Shell Size - Insert: M12-4
Shell Size, MIL: -
Mounting Type: Free Hanging (In-Line), Right Angle
Mounting Feature: -
Termination: Screw
Fastening Type: Threaded
Orientation: A
Primary Material: Metal
Shell Material: Brass
Shell Finish: Nickel
Contact Finish - Mating: Gold
Color: Black, Silver
Ingress Protection: IP67 - Dust Tight, Waterproof
Material Flammability Rating: -
Features: Backshell
Shielding: Unshielded
Current Rating (Amps): 4A
Voltage Rating: 250V
Cable Opening: 0.236" ~ 0.315" (6.00mm ~ 8.00mm)
Operating Temperature: -40°C ~ 85°C
Backshell Material, Plating: Polybutylene Terephthalate (PBT), Glass Filled
Contact Material: Zinc Alloy
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Insert Material: Polyamide (PA), Nylon
Applications: Industrial
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
