Product Description:
INGKE YKM12-ATR1204D 100% compatible with T4112501041-000 TE Connectivity
Part No.: T4112501041-000 TE Connectivity
INGKE Part No.: YKM12-ATR1204D
Made in China: INGKE TECHNOLOGY

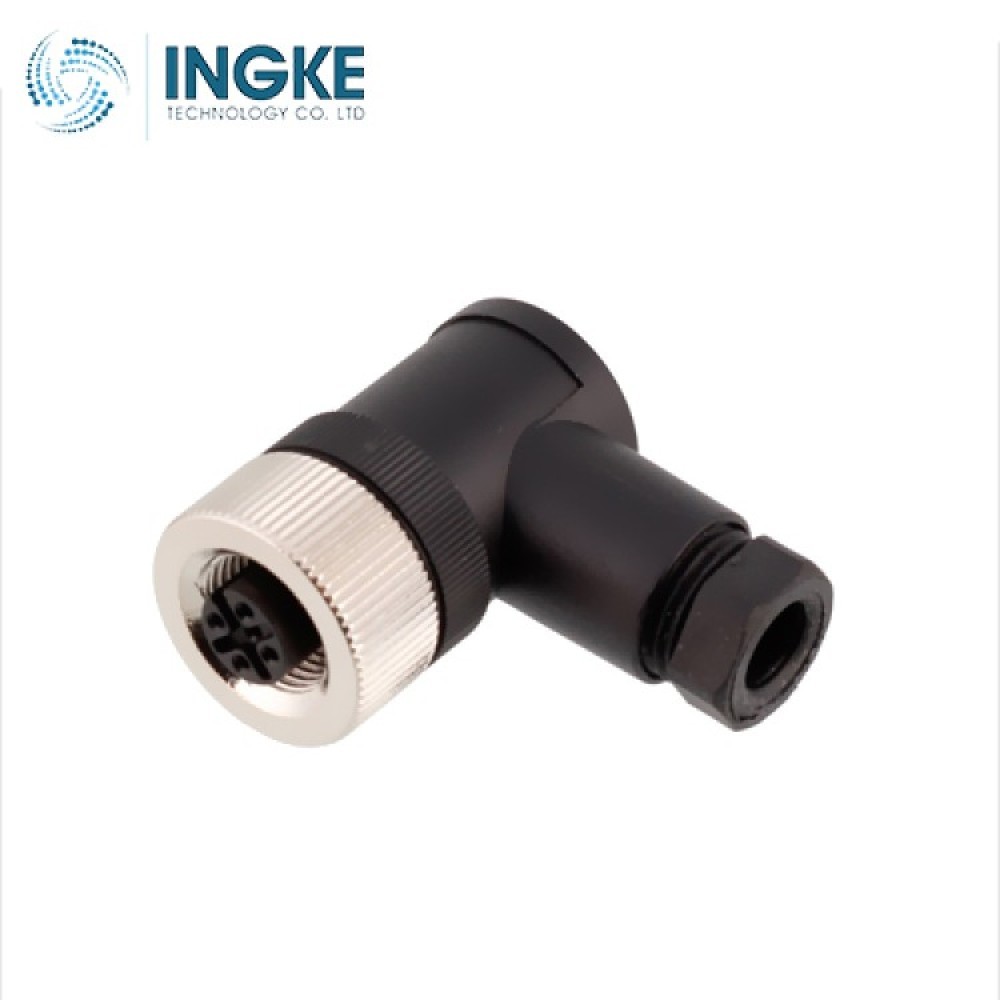

Description: T4112501041-000 TE Connectivity M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Plug, Female Sockets
Number of Positions: 4
Shell Size - Insert: M12-4
Mounting Type: Free Hanging (In-Line), Right Angle
Termination: Screw
Fastening Type: Threaded
Orientation: D
Primary Material: Metal
Shell Material: Brass
Shell Finish: Nickel
Contact Finish - Mating: Gold
Color: Black, Silver
Ingress Protection: IP67 - Dust Tight, Waterproof
Features: Backshell, Coupling Nut
Shielding: Unshielded
Current Rating (Amps): 4A
Voltage Rating: 250V
Cable Opening: 0.157" ~ 0.236" (4.00mm ~ 6.00mm)
Operating Temperature: -40°C ~ 85°C
Backshell Material, Plating: Polybutylene Terephthalate (PBT), Glass Filled
Contact Material: Zinc Alloy
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Insert Material: Polyamide (PA), Nylon
Applications: Industrial
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
