Product Description:
INGKE YKM12-ATS1105A 100% compatible with RSC 5/7 Lumberg Automation
Part No.: RSC 5/7 Lumberg Automation
INGKE Part No.: YKM12-ATS1105A
Made in China: INGKE TECHNOLOGY

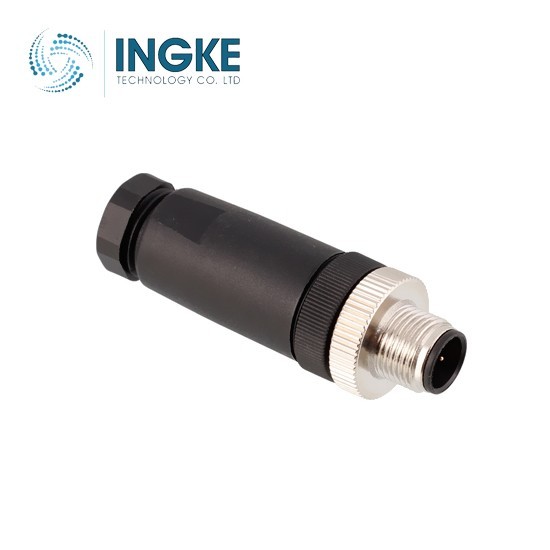

Description: RSC 5/7 Lumberg Automation M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Plug, Male Pins
Number of Positions: 5
Shell Size - Insert: M12-5
Orientation: A
Mounting Type: Free Hanging (In-Line)
Termination: Screw
Fastening Type: Threaded
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Copper Alloy
Color: Black, Silver
Backshell Material, Plating: Polyamide (PA), Nylon
Contact Material: Copper Zinc
Insert Material: Polyamide (PA), Nylon
Current Rating (Amps): 4A
Voltage Rating: 48VAC, 60VDC
Operating Temperature: -40°C ~ 85°C
Features: Backshell
Ingress Protection: IP67 - Dust Tight, Waterproof
Applications: Industrial, Medical, Automotive, Data Management
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
