Product Description:

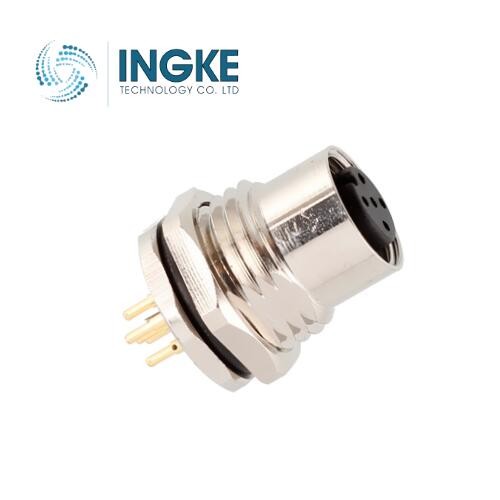

INGKE YKM12-PS212A-701 100% cross MSAS-12PFFP-SF8001 Amphenol LTW
Part No.: MSAS-12PFFP-SF8001 Amphenol LTW
INGKE Part No.: YKM12-PS212A-701
Made in China: INGKE Technology
Description: MSAS-12PFFP-SF8001 M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Plug, Female Sockets
Number of Positions: 12
Shell Size - Insert: M12-12
Mounting Type: Panel Mount, Through Hole
Mounting Feature: Bulkhead - Front Side Nut
Termination: Solder
Orientation: A
Primary Material: Metal
Shell Material: Zinc Alloy
Shell Finish: Nickel
Contact Finish - Mating: Gold
Ingress Protection: IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Current Rating (Amps): 1.5A
Voltage Rating: 30V
Operating Temperature: -40°C ~ 105°C
Contact Material: Copper Alloy
Insert Material: Polyamide (PA), Nylon, Glass Filled
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
