Product Description:

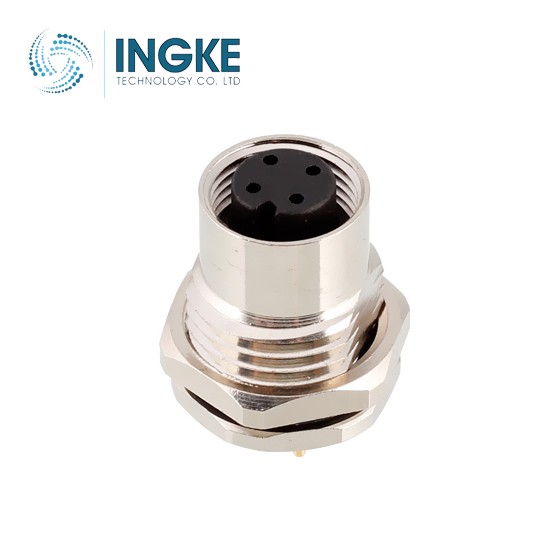

INGKE YKM12-PN204A-702 100% replace M12A-04PFFP-SF8002 Amphenol
Part No.: M12A-04PFFP-SF8002 Amphenol
INGKE Part No.: YKM12-PN204A-702
Made in China: INGKE TECHNOLOGY
Lead time: 1-2 weeks
MOQ: 1 pcs
Description: M12 4pin Female A Code
Category: Connectors, Interconnects, Circular Connectors
Connector Type: Receptacle, Female Socket
Number of Positions: 4
Shell Size - Insert: M12-4
Orientation: A
Mounting Type: Panel Mount, Through Hole
Mounting Feature: -
Termination: Solder
Fastening Type: Threaded
Primary Material: Metal
Shell Material: -
Shell Finish: Nickel
Contact Finish - Mating: Copper Alloy
Color: Silver
Backshell Material, Plating: -
Contact Material: -
Insert Material: -
Current Rating (Amps): 4A
Voltage Rating: 250V
Operating Temperature: -40°C ~ 105°C
Ingress Protection: IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Applications: Industrial, Medical, Automotive, Data Management
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
