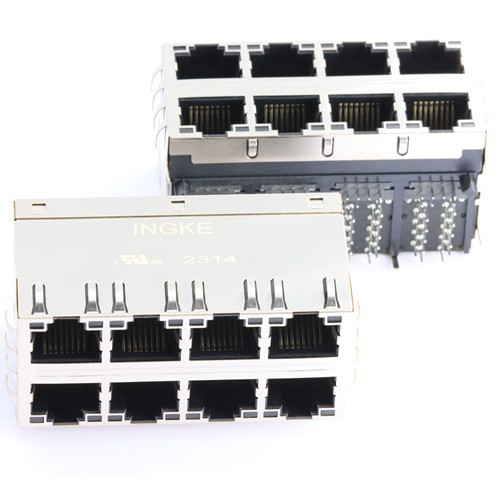

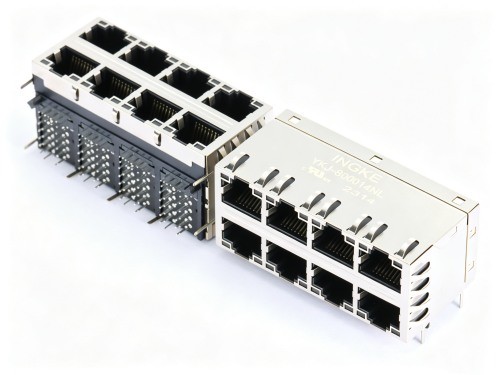

YKJD-800014NL J20-0014NL Pulse

Product Item : YKJD-800014NL INGKE
Category： 2x4 Ports RJ45 Connector
100Base-T 2x4 ports RJ45
Replace J20-0014NL Pulse
INQUIRY EMAIL

Product Description:

INGKE YKJD-800014NL 100% compatible with J20-0014NL Pulse

Part No.: J20-0014NL Pulse
INGKE Part No.: YKJD-800014NL
Made in China: INGKE Technology
Description: J20-0014NL Pulse 100Base-T 2x4 ports RJ45 with integrated magnetics
MOQ: 1PCS
Lead Time: within 1 week

Speed: 100BASE-T
Latch: Tab Up and Tab Down
Number of Ports: 2x4 ports
LED: Green,Yellow - Green,Yellow
Shielding: Shielded, EMI Finger
PoE Rating: No POE
PCB Mount: Through Hole
Operating Temperature: -40°C ~ 85°C
Mating Cycle: 750
Shielding Plating: 30µ" Nickel
Contact Material: Phosphor Bronze
Contact Plating: 30µ" Gold
Plastic Housing Material: Thermoplastic LCP black
Plastic Housing Flammability: Rating UL94 V-0
Packaging: Tray
Categories: Connector, Interconnect, Modular Connectors
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
Chinese UL factory for producing J20-0014NL Pulse RJ45 with integrated magnetics
