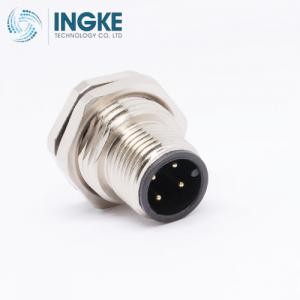

YKP12-M108ASRN 859-008-103R004 NorComp

Product Item : YKP12-M108ASRN INGKE
Category： M12 Panel Mount Connector
M12 8Pin Male A Code
Replace 859-008-103R001 NorComp
Replace 859-008-103R004 NorComp
INQUIRY EMAIL

Product Description:

INGKE YKP12-M105ASRN 100% cross 859-005-103R004 NorComp

Part No.: 859-005-103R004 NorComp
INGKE Part No.: YKP12-M105ASRN
Made in China: INGKE Technology
Description: 859-005-103R004 NorComp M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: Receptacle, Male Pins
Number of Positions: 3(2,3,4,5,6,8,12 are optional)
Shell Size - Insert: M12-3
Mounting Type: Panel Mount
Mounting Feature: Bulkhead - Front Side Nut
Termination: Solder Cup
Primary Material: Metal
Shell Material: Brass
Shell Finish: Nickel
Orientation: A
Contact Finish - Mating: Gold
Ingress Protection: IP67 - Dust Tight, Waterproof
Current Rating (Amps): 4A
Voltage Rating: 250V
Operating Temperature: -40°C ~ 85°C
Contact Material: Brass
Contact Finish Thickness - Mating: Flash
Insert Material: Polybutylene Terephthalate (PBT)
Applications: Industrial, Medical
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH

100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
