YKB12-P204ASS 858-004-203RLS4 NorComp

Product Item : YKB12-P204ASS INGKE
Category： M12 Panel Mount Connector
M12 4Pin A Code
Replace 858-004-203RLS4 NorComp
INQUIRY EMAIL

Product Description:

INGKE YKB12-P204ASS 100% compatible with 858-004-203RLS4 NorComp

Part No.: 858-004-203RLS4 NorComp
INGKE Part No.: YKB12-P204ASS
Made in China: INGKE Technology

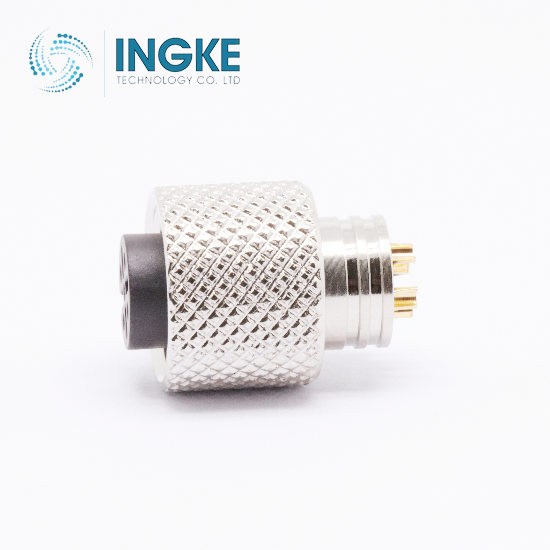

Description: 858-004-203RLS4 NorComp 4Pin A Code M12 Circular Connectors
MOQ: 1PCS
Lead Time: 1-2 Weeks

Category: Connectors, Interconnects, Circular Connectors
Connector Type: Plug, Female Sockets
Number of Positions: 4
Shell Size - Insert: M12-4
Orientation: A
Mounting Type: Free Hanging (In-Line)
Mounting Feature: -
Termination: Solder Cup
Fastening Type: Threaded
Primary Material: Metal
Shell Material: Brass
Shell Finish: Nickel
Contact Finish - Mating: Gold
Color: Black, Silver
Backshell Material, Plating: -
Contact Material: Brass
Insert Material: Polybutylene Terephthalate (PBT)
Current Rating (Amps): 4A
Voltage Rating: 250V
Operating Temperature: -40°C ~ 85°C
Features: -
Shielding: Shielded
Applications: Industrial, Medical
Ingress Protection: IP67 - Dust Tight, Waterproof
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH

100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell

Tags: 858-004-203RLS4 NorComp
