Product Description:

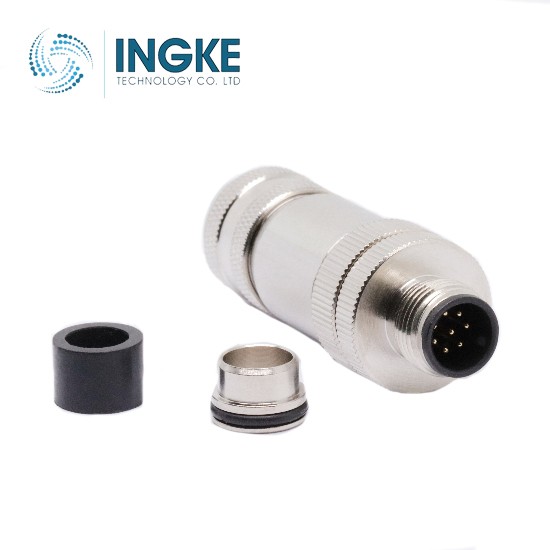

INGKE YKM12-KP08A01 100% cross 5-2271111-2 TE Connectivity
Part No.: 5-2271111-2 TE Connectivity
INGKE Part No.: YKM12-KP08A01
Made in China: INGKE Technology
Description: 5-2271111-2 M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Plug, Male Pins
Number of Positions: 8
Number of Positions Loaded: All
Shell Size - Insert: M12-8
Mounting Type: Free Hanging (In-Line)
Orientation: A
Termination: Screw
Fastening Type: Threaded
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Color: Silver
Current Rating (Amps): 2A
Voltage Rating: 60VAC/DC
Backshell Material, Plating: Zinc Die Cast
Features: Backshell
Operating Temperature: -40°C ~ 85°C
Ingress Protection: IP67 - Dust Tight, Waterproof
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
