Product Description:

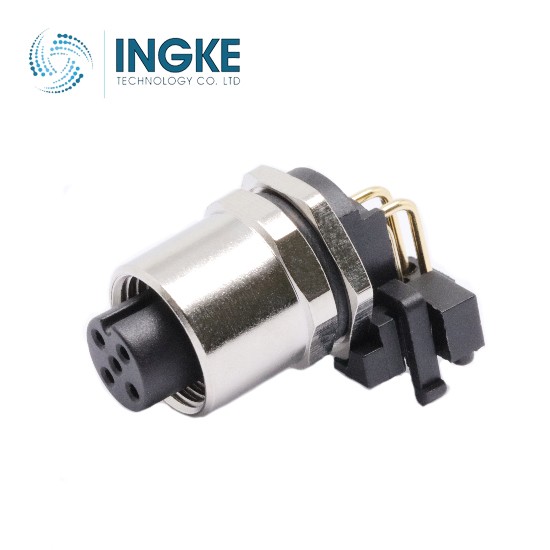

INGKE YKM12-PTB0204A 100% cross 43-01196 Conec
Part No.: 43-01196 Conec
INGKE Part No.: YKM12-PTB0204A
Made in China: INGKE Technology
Description: 43-01196 M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Plug, Female Sockets
Number of Positions: 4
Number of Positions Loaded: All
Shell Size - Insert: M12-4
Mounting Type: Panel Mount, Through Hole, Right Angle
Mounting Feature: Bulkhead - Front Side Nut
Termination: Solder
Fastening Type: Threaded
Orientation: A
Primary Material: Metal
Shell Material: Copper Zinc
Shell Finish: Nickel
Contact Finish - Mating: Gold
Ingress Protection: IP67 - Dust Tight, Waterproof
Features: Board Guide, Board Lock
Shielding: Unshielded
Current Rating (Amps): 4A
Voltage Rating: 250V
Operating Temperature: -30°C ~ 85°C
Contact Material: Copper Zinc
Insert Material: Polyamide (PA), Nylon, Glass Filled
Applications: Industrial
Moisture Sensitivity Level (MSL):1 (Unlimited)
RoHS Compliant and REACH
