Product Description:
INGKE YKM12-PTB3205A 100% cross 4-2172079-2 TE Connectivity
Part No.: 4-2172079-2 TE Connectivity
INGKE Part No.: YKM12-PTB3205A
Made in China: INGKE Technology

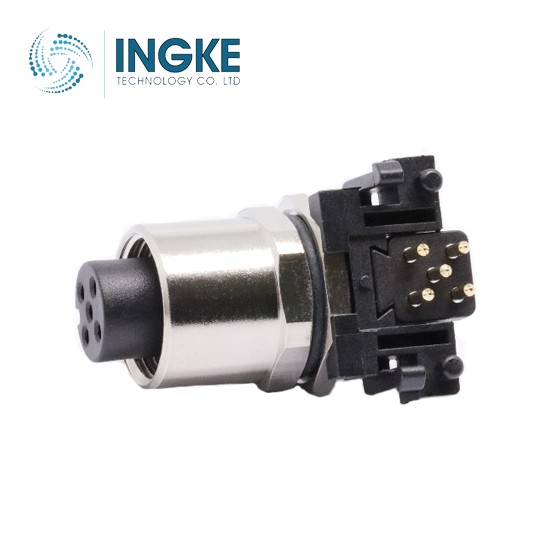

Description: 4-2172079-2 M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Plug, Female Sockets
Number of Positions: 5
Shell Size - Insert: M12-5
Mounting Type: Panel Mount, Through Hole, Right Angle
Mounting Feature: Bulkhead - Front Side Nut
Termination: Solder
Fastening Type: Threaded
Orientation: A
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Contact Material: Copper Alloy
Insert Material: Polybutylene Terephthalate (PBT), Polycarbonate (PC)
Current Rating (Amps): 4A
Voltage Rating: 60V
Operating Temperature: -40°C ~ 105°C
Shielding: Shielded
Ingress Protection: IP67 - Dust Tight, Waterproof
Moisture Sensitivity Level (MSL):1 (Unlimited)
RoHS Compliant and REACH
