Product Description:
INGKE YKM12-PTB0105A 100% cross 4-2172062-2 TE Connectivity
Part No.: 4-2172062-2 TE Connectivity
INGKE Part No.: YKM12-PTB0105A
Made in China: INGKE Technology

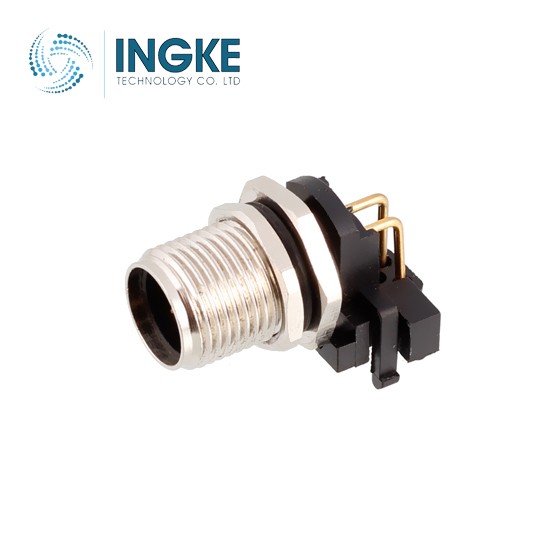

Description: 4-2172062-2 M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Receptacle, Male Pins
Number of Positions: 5
Shell Size - Insert: M12-5
Mounting Type: Panel Mount, Through Hole, Right Angle
Mounting Feature: Bulkhead - Front Side Nut
Termination: Solder
Fastening Type: Threaded
Orientation: A
Primary Material: Metal
Shell Material: Brass
Contact Finish - Mating: Gold
Ingress Protection: IP68 - Dust Tight, Waterproof
Features: Board Guide, Board Lock
Current Rating (Amps): 4A
Voltage Rating: 125V
Operating Temperature: -40°C ~ 85°C
Applications: Automotive, Industrial
Moisture Sensitivity Level (MSL):1 (Unlimited)
RoHS Compliant and REACH
