Product Description:
INGKE YKP12-M204APRP 100% cross 3-2271143-2 TE Connectivity
Part No.: 3-2271143-2 TE Connectivity
INGKE Part No.: YKP12-M204APRP
Made in China: INGKE Technology

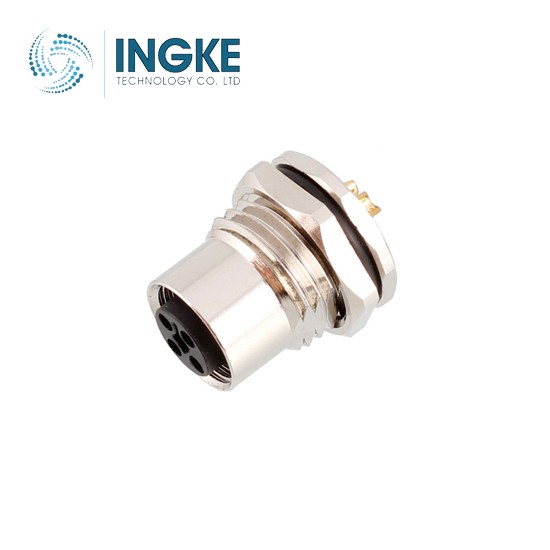

Description: 3-2271143-2 M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Receptacle, Female Sockets
Number of Positions: 4
Shell Size - Insert: M12-4
Mounting Type: Panel Mount, Through Hole
Mounting Feature: Bulkhead
Termination: Solder
Fastening Type: Threaded
Orientation: A
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Color: Silver
Ingress Protection: IP68 - Dust Tight, Waterproof
Current Rating (Amps): 4A
Voltage Rating: 250VAC/DC
Operating Temperature: -40°C ~ 85°C
Contact Finish Thickness - Mating: 19.7µin (0.50µm)
Applications: Automotive, Industrial
Moisture Sensitivity Level (MSL):1 (Unlimited)
RoHS Compliant and REACH
