Product Description:
INGKE YKM12-PTB01249A 100% cross 3-2172081-2 TE Connectivity
Part No.: 3-2172081-2 TE Connectivity
INGKE Part No.: YKM12-PTB01249A
Made in China: INGKE Technology

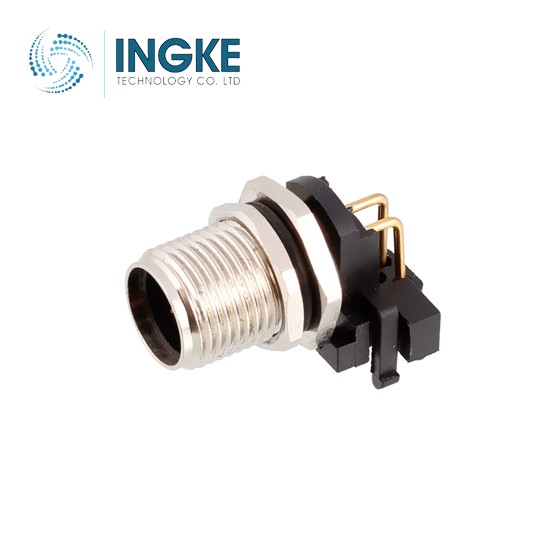

Description: 3-2172081-2 M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Receptacle, Male Pins
Number of Positions: 4
Shell Size - Insert: M12-4
Coding: A Coded
Mounting Type: Panel Mount, Through Hole, Right Angle
Mounting Feature: Bulkhead
Termination: Solder
Fastening Type: Threaded
Primary Material: Metal
Shell Material: Brass
Shell Finish: Nickel
Contact Finish - Mating: Gold
Contact Finish - Mating: Gold
Ingress Protection: IP68 - Dust Tight, Waterproof
Current Rating (Amps): 4A
Voltage Rating: 250V
Operating Temperature: -40°C ~ 85°C
Moisture Sensitivity Level (MSL):1 (Unlimited)
RoHS Compliant and REACH
