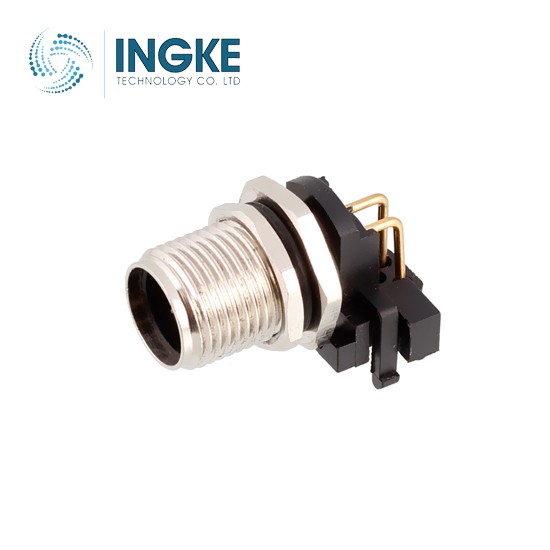

  • YYKM12-PTB3104D 3-2172065-2 TE Connectivity

YYKM12-PTB3104D 3-2172065-2 TE Connectivity

Product Description:
INGKE YKM12-PTB3104D 100% cross 3-2172065-2 TE Connectivity

Part No.: 3-2172065-2 TE Connectivity
INGKE Part No.: YKM12-PTB3104D
Made in China: INGKE Technology
Description: 3-2172065-2 M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: Receptacle, Male Pins
Number of Positions: 4
Shell Size - Insert: M12-4
Mounting Type: Panel Mount, Through Hole, Right Angle
Termination: Solder
Fastening Type: Threaded
Primary Material: Metal
Shell Material: Brass
Shell Finish: Nickel
Contact Finish - Mating: Tin
Orientation: D
Features: Backshell
Shielding: Shielded
Current Rating (Amps): 4A
Voltage Rating: 125V
Operating Temperature: -40°C ~ 85°C

Ingress Protection: IP67 - Dust Tight, Waterproof

Moisture Sensitivity Level (MSL):1 (Unlimited)
RoHS Compliant and REACH
