Product Description:
INGKE YKS12-M208XSRM 100% cross 2271195-1 TE Connectivity
Part No.: 2271195-1 TE Connectivity
INGKE Part No.: YKS12-M208XSRM
Made in China: INGKE Technology

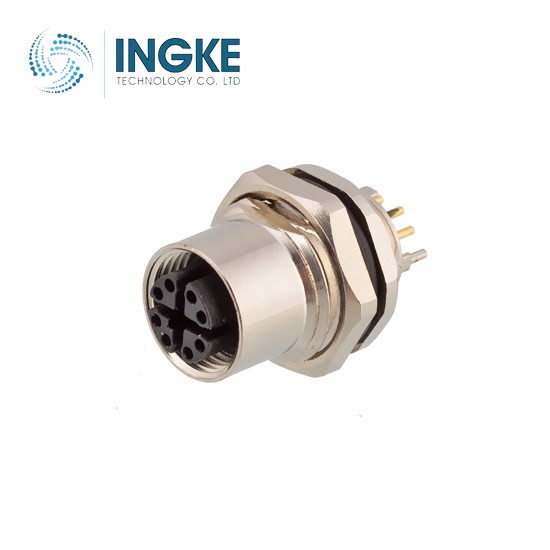

Description: 2271195-1 M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Receptacle, Female Sockets
Number of Positions: 8
Shell Size - Insert: M12-8
Mounting Type: Panel Mount
Mounting Feature: Bulkhead - Front Side Nut
Termination: Solder Cup
Fastening Type: Threaded
Orientation: X
Primary Material: Metal
Shell Material: Zinc Aluminum Alloy
Shell Finish: Nickel
Contact Finish - Mating: Gold
Color: Silver
Ingress Protection: IP67 - Dust Tight, Waterproof
Features: Board Guide
Shielding: Shielded
Current Rating (Amps): 0.5A
Voltage Rating: 48V
Operating Temperature: -40°C ~ 70°C
Contact Finish Thickness - Mating: 19.7µin (0.50µm)
Applications: Automotive, Industrial
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
