Product Description:
INGKE YKF12-M108XFN 100% cross 2120952-1 TE Connectivity
Part No.:2120952-1 TE Connectivity
INGKE Part No.:YKF12-M108XFN
Made in China: INGKE Technology

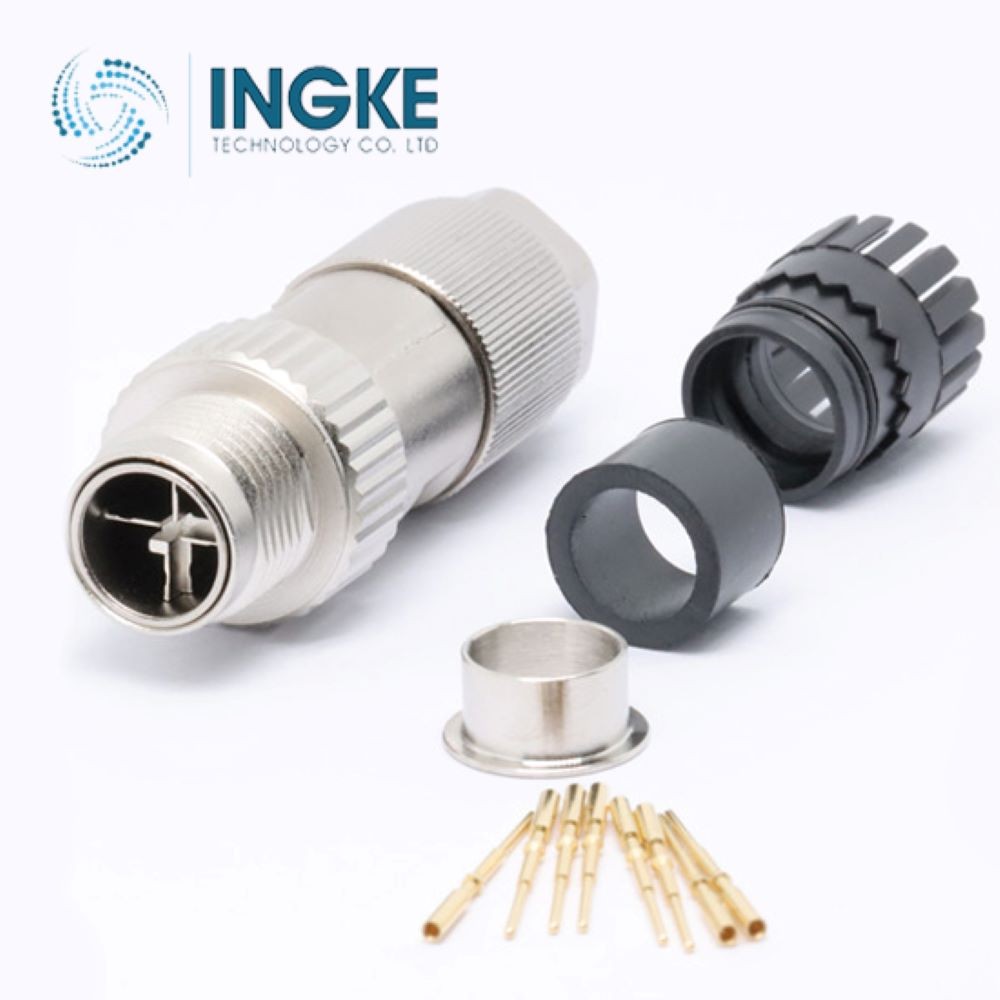

Description: 2120952-1 M12 Circular Connector
MOQ: 1PCS
Lead Time:1-2 Weeks
Connector Type: Plug, Male Pins
Number of Positions:8
Shell Size - Insert:M12-8
Orientation: X
Mounting Type: Free Hanging (In-Line)
Termination: IDC
Fastening Type: Push-Twist
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Color: Silver
Backshell Material, Plating: Zinc Die Cast, Nickel
Contact Material: Copper Zinc
Insert Material: Polyamide (PA66), Nylon 6/6, Halogen Free
Current Rating (Amps):0.5A
Voltage Rating:50VAC, 60VDC
Operating Temperature:-40°C ~85°C
Features: Backshell
Shielding: Shielded
Ingress Protection:IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Applications: Industrial, Medical, Automotive
Moisture Sensitivity Level (MSL):1 (Unlimited)
RoHS Compliant and REACH
