YKM12-1543029 1543029 Phoenix Contact

Product Item : YKM12-1543029 INGKE
Category： M12 Field-Attachable Connector
A Code 4Pin Female M12
Replace 1543029 Phoenix Contact
INQUIRY EMAIL

Product Description:

INGKE YKM12-1543029 100% cross 1543029 Phoenix Contact

Part No.: 1543029 Phoenix Contact
INGKE Part No.: YKM12-1543029
Made in China: INGKE Technology

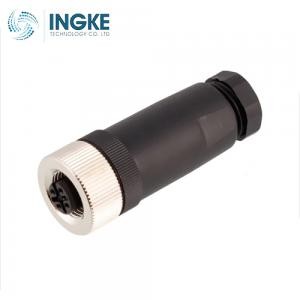

Description: 1543029 Phoenix Contact A Code 4Pin Female M12 Sensor Actuator Connectors
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: Female Socket
Number of Positions: 4
Shell Size - Insert: M12-4
Orientation: A Code
Mounting Type: Free Hanging (In-Line)
Termination: Screw
Locking Mechanism: Push Twist
Primary Material: Metal
Shell Material: Brass
Shell Finish：Nickel
Contact Material: Copper Zinc
Contact Finish - Mating: Gold
Cable Opening: 6.00mm ~ 8.00mm
Ingress Protection: IP67 - Dust Tight, Waterproof
Rated voltage: 250V
Rated current: 4A
Operating Temperature: -40°C ~ 85°C
Applications: Automation Control, Industrial, Telecommunications
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH

100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
Chinese UL factory for producing 1543029 Phoenix Contact M12 Sensor Actuator Connectors
