Product Description:

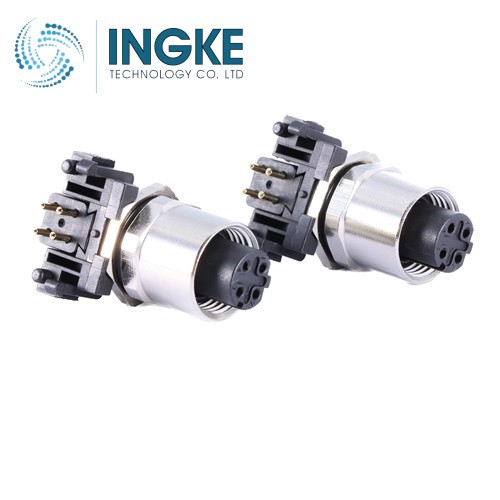

INGKE YKM12-PTB3204D 100% cross 1534630 Phoenix Contact
Part No.: 1534630 Phoenix Contact
INGKE Part No.: YKM12-PTB3204D
Made in China: INGKE Technology
Description: 1534630 M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Plug, Female Sockets
Number of Positions: 4
Shell Size - Insert: M12-4
Mounting Type: Panel Mount, Through Hole, Right Angle
Termination: Solder
Fastening Type: Threaded
Orientation: D
Shielding: Shielded
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Contact Material: Copper Zinc
Insert Material: Polybutylene Terephthalate (PBT), Polycarbonate (PC)
Current Rating (Amps): 4A
Voltage Rating: 250V
Operating Temperature: -30°C ~ 85°C
Ingress Protection: IP67 - Dust Tight, Waterproof
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
