Product Description:
INGKE YKB12-M105ASFM 100% cross 1520055 Phoenix Contact
Part No.: 1520055 Phoenix Contact
INGKE Part No.: YKB12-M105ASFM
Made in China: INGKE Technology

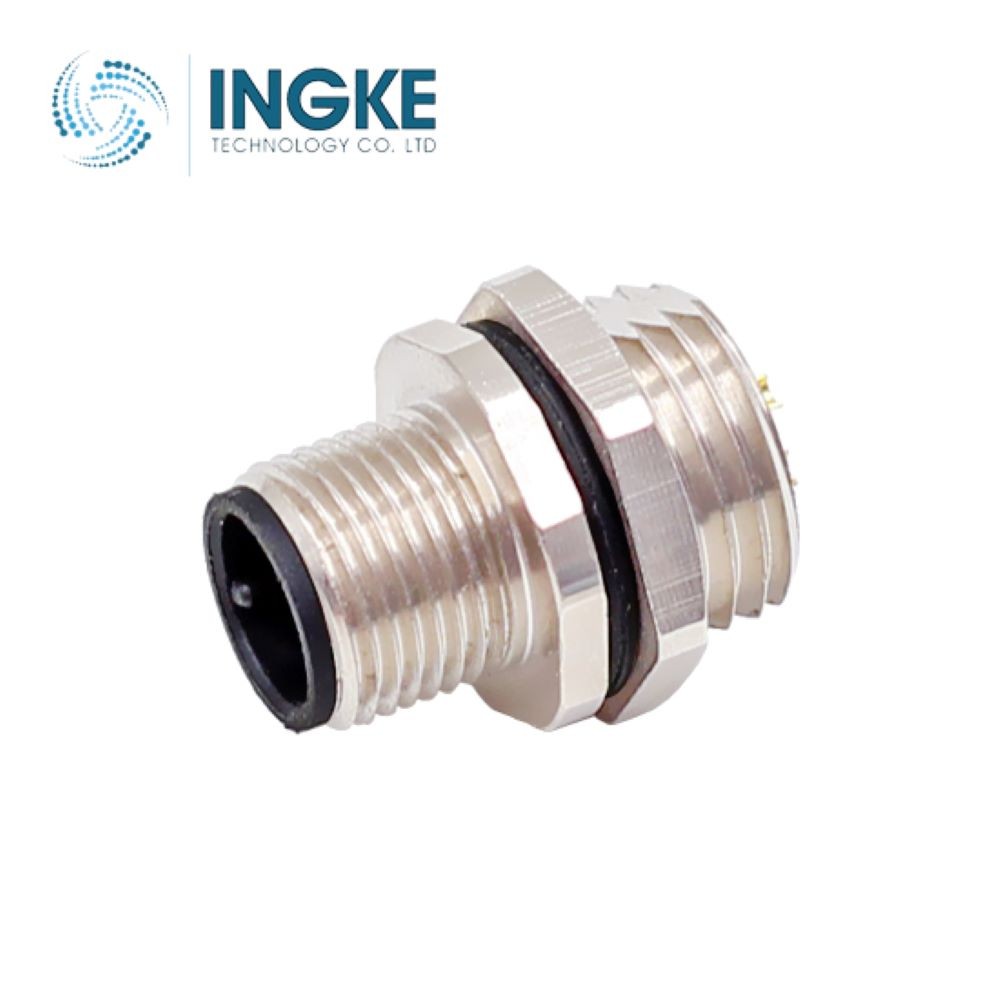

Description: 1520055 M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Plug, Male Pins
Number of Positions: 5
Number of Positions Loaded: All
Shell Size - Insert: M12-5
Mounting Feature: Bulkhead - Rear Side Nut
Termination: Solder Cup
Primary Material: Metal
Contact Material: Copper Alloy
Insert Material: Polyamide (PA66), Nylon 6/6
Shell Material: Zinc Die Cast
Current Rating (Amps): 5A
Voltage Rating: 60VAC/DC
Operating Temperature: -25°C ~ 90°C
Mounting Type: Panel Mount
Orientation: A
Usage: Industrial, Medical, Automotive
Ingress Protection: IP67 - Dust Tight, Waterproof
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
