Product Description:
INGKE YKM8-PTB0103A 100% cross 1440070 Phoenix Contact
Part No.: 1440070 Phoenix Contact
INGKE Part No.: YKM8-PTB0103A
Made in China: INGKE Technology

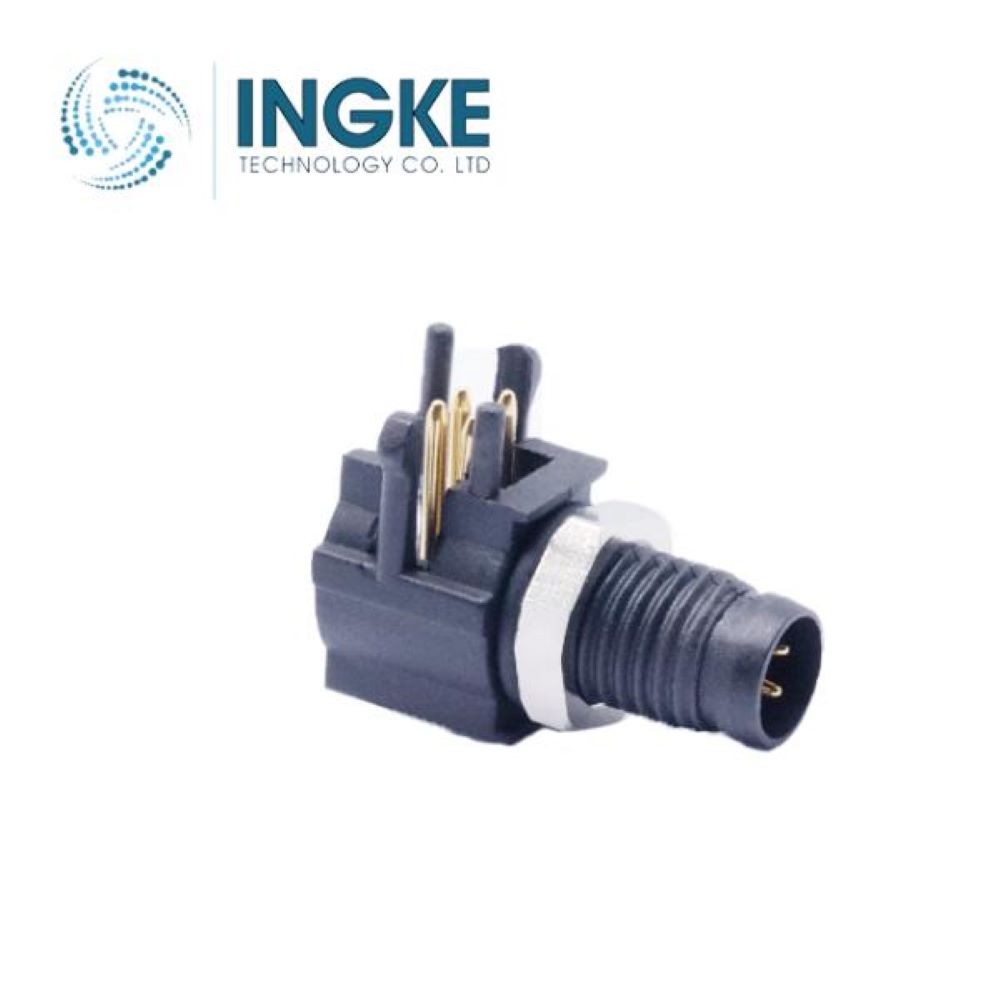

Description: 1440070 Phoenix Contact M8 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Category: Connectors, Interconnects/Circular Connector
Connector Type: Plug, Male Pins
Number of Positions: 3
Shell Size - Insert: M8-3
Shell Size, MIL: -
Mounting Type: Panel Mount, Through Hole, Right Angle
Mounting Feature: Bulkhead - Front Side Nut
Termination: Solder
Fastening Type: Threaded
Orientation: A
Primary Material: Plastic
Shell Material: Polyamide (PA66), Nylon 6/6
Shell Finish: -
Contact Finish - Mating: Gold
Color: Black
Backshell Material, Plating: -
Contact Material: Copper Alloy
Contact Finish Thickness - Mating: -
Insert Material: Polyamide (PA66), Nylon 6/6
Current Rating (Amps): 4A
Voltage Rating: 50VAC, 60VDC
Cable Opening: -
Operating Temperature: -25°C ~ 85°C
Material Flammability Rating: UL94 HB
Features: Board Guide, Board Lock
Shielding: -
Ingress Protection: IP67 - Dust Tight, Waterproof
Lead Free: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
