Product Description:

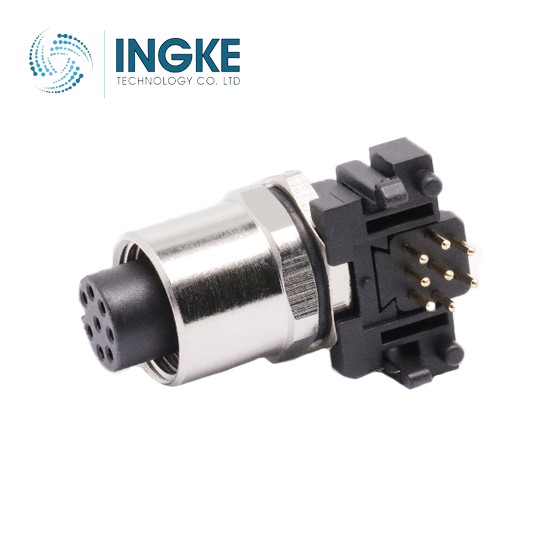

INGKE YKM12-PTB0208A 100% cross 1436974 Phoenix Contact
Part No.: 1436974 Phoenix Contact
INGKE Part No.: YKM12-PTB0208A
Chinese factory: INGKE Technology
Description: 1436974 M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Receptacle, Female Sockets
Number of Positions: 8
Number of Positions Loaded: All
Shell Size - Insert: M12-8
Mounting Type: Panel Mount, Through Hole, Right Angle
Mounting Feature: Bulkhead - Rear Side Nut
Termination: Solder
Fastening Type: Push-Twist
Orientation: A
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Ingress Protection: IP67 - Dust Tight, Waterproof
Features: Board Guide, Board Lock
Current Rating (Amps): 2A
Voltage Rating: 30V
Operating Temperature: -25°C ~ 85°C
Contact Material: Copper Zinc
Insert Material: Polyamide (PA66), Nylon 6/6
Applications: Industrial
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
