YKM12-RTS112A68 1404421 Phoenix Contact

INGKE YKM12-RTS112A68 100% cross 1404421 Phoenix Contact

Part No.: 1404421 Phoenix Contact
INGKE Part No.: YKM12-RTS112A68
Made in China: INGKE TECHNOLOGY

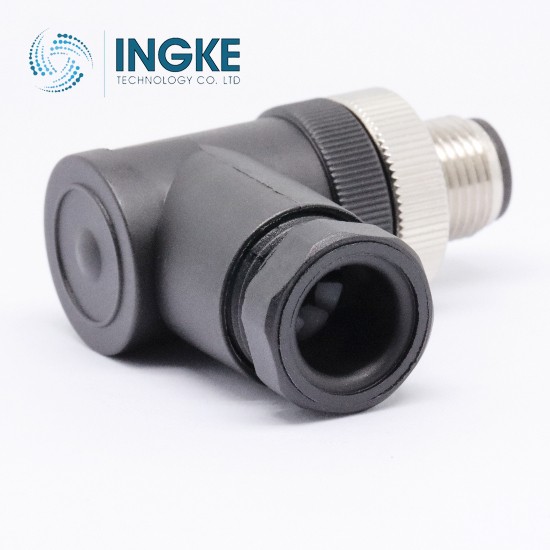

Description: 14044216 M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: Plug, Male Pins
Number of Positions: 12
Number of Positions Loaded: All
Shell Size - Insert: M12-12
Mounting Type: Free Hanging (In-Line), Right Angle
Orientation: A
Termination: Solder Cup
Fastening Type: Threaded
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Color: Silver
Current Rating (Amps): 1.5A
Voltage Rating: 30VAC/DC
Backshell Material, Plating: Zinc Die Cast, Nickel
Contact Material: Copper Zinc
Insert Material: Polyamide (PA), Nylon
Material Flammability Rating: UL94 HB
Features: Backshell
Operating Temperature: -40°C ~ 85°C
Ingress Protection: IP67 - Dust Tight, Waterproof
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
